K164 Differential Control Module X1
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

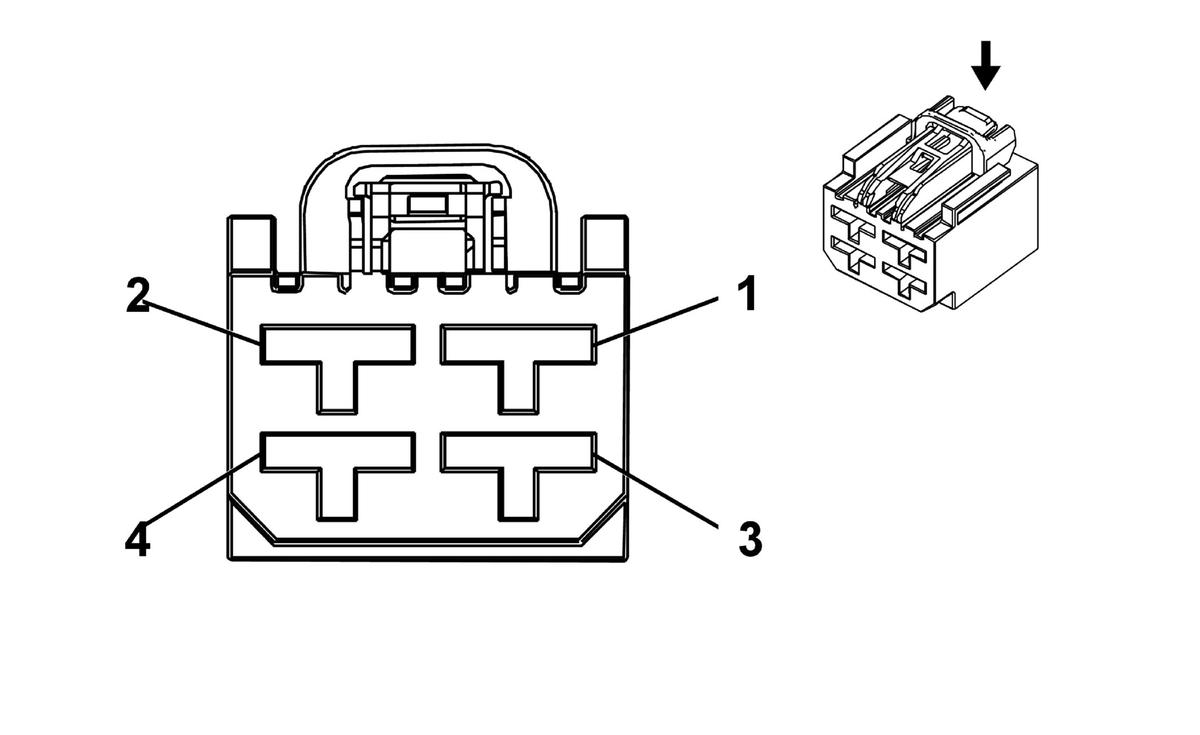

Connector Part Information
- Harness Type: Body
- OEM Connector: 10846813
- Service Connector: 84766433
- Description: 4 -Way F 6.3 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
GY / BN |
7968 |
Axle Differential Lock Control High |
I |
- |
| 2 |
2.5 |
BK |
2550 |
Ground |
I |
- |
| 3 |
2.5 |
RD / BU |
7340 |
Camshaft W 2 Low Reference |
I |
- |
| 4 |
2 |
YE / WH |
7969 |
Axle Differential Lock Control Low |
I |
- |
