K179 Automated Driving Mapping Module X3
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

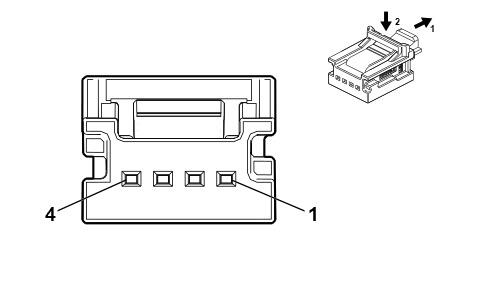

Connector Part Information
- Harness Type: Body
- OEM Connector: 35249191
- Service Connector: 84941156
- Description: 4 -Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
WH / BN |
7224 |
Ethernet Bus 11 [-] |
I |
- |
| 3 |
0.35 |
YE / BN |
7225 |
Ethernet Bus 11 [+] |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
