S2R Automatic Transmission Manual Shift Auxiliary Position Switch - Right
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

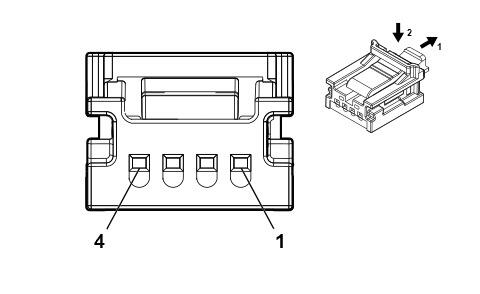

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13507115
- Service Connector: Service by Harness - See Part Catalog
- Description: 4 -Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK / WH |
6051 |
Steering Wheel Ground |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
- |
YE / BU |
6855 |
Transmission Tap Down Switch Signal |
I |
- |
| 4 |
- |
VT / YE |
5526 |
Tap Up/Tap Down Switch Signal |
I |
- |
