Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Column Lock Module
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Lock Control Module Protector Bolt [4x] |
Yes |
- |
Tighten until the bolt head breaks off |
Column Lock Module Replacement |
| 2 |
Steering Column Lock Control Module Bolt [4x] |
- |
- |
9.5 N.m (84 lb in) |
Column Lock Module Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|
Steering Column (AWD)
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Intermediate Steering Shaft Lower Bolt |
- |
Yes |
57 N.m (42 lb ft) |
Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Intermediate Steering Shaft Replacement (AWD) , or Intermediate Steering Shaft Replacement (RWD with Blackwing) |
| 2 |
Mid Intermediate Steering Shaft Bolt |
- |
Yes |
36 N.m (27 lb ft) |
Mid Lower Intermediate Steering Shaft Replacement |
| 3 |
Mid Intermediate Steering Shaft Bolt [2x] |
- |
Yes |
36 N.m (27 lb ft) |
Mid Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Mid Intermediate Steering Shaft Replacement (AWD) , or Mid Intermediate Steering Shaft Replacement (RWD with Blackwing) |
| 4 |
Intermediate Steering Shaft Boot Nut [3x] |
- |
- |
Intermediate Steering Shaft Boot Nut Sequence |
Intermediate Steering Shaft Boot Replacement - Outer |
| 5 |
Intermediate Steering Shaft Boot Nut |
- |
- |
9 N.m (80 lb in) |
Intermediate Steering Shaft Boot Replacement - Inner |
| 6 |
Upper Intermediate Steering Shaft Bolt |
- |
- |
50 N.m (37 lb ft) |
Steering Column Replacement (with N37) , or Steering Column Replacement (with N38) |
| 7 |
Steering Column Nut [4x] |
- |
- |
Steering Column Nut Sequence |
Steering Column Replacement (with N37) , or Steering Column Replacement (with N38) |
| 8 |
Steering Wheel Bolt |
- |
Yes |
45 N.m (33 lb ft) |
Steering Wheel Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|
Steering Column (RWD)
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Intermediate Steering Shaft Lower Bolt |
- |
Yes |
57 N.m (42 lb ft) |
Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Intermediate Steering Shaft Replacement (AWD) , or Intermediate Steering Shaft Replacement (RWD with Blackwing) |
| 2 |
Mid Intermediate Steering Shaft Bolt [2x] |
- |
Yes |
36 N.m (27 lb ft) |
Mid Intermediate Steering Shaft Replacement (RWD without Blackwing) , or Mid Intermediate Steering Shaft Replacement (AWD) , or Mid Intermediate Steering Shaft Replacement (RWD with Blackwing) |
| 3 |
Intermediate Steering Shaft Boot Nut [3x] |
- |
- |
Intermediate Steering Shaft Boot Nut Sequence |
Intermediate Steering Shaft Boot Replacement - Outer |
| 4 |
Intermediate Steering Shaft Boot Nut |
- |
- |
9 N.m (80 lb in) |
Intermediate Steering Shaft Boot Replacement - Inner |
| 5 |
Upper Intermediate Steering Shaft Bolt |
- |
- |
50 N.m (37 lb ft) |
Upper Intermediate Steering Shaft Replacement |
| 6 |
Steering Column Nut [4x] |
- |
- |
Steering Column Nut Sequence |
Steering Column Replacement (with N37) , or Steering Column Replacement (with N38) |
| 7 |
Steering Wheel Bolt |
- |
Yes |
45 N.m (33 lb ft) |
Steering Wheel Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|

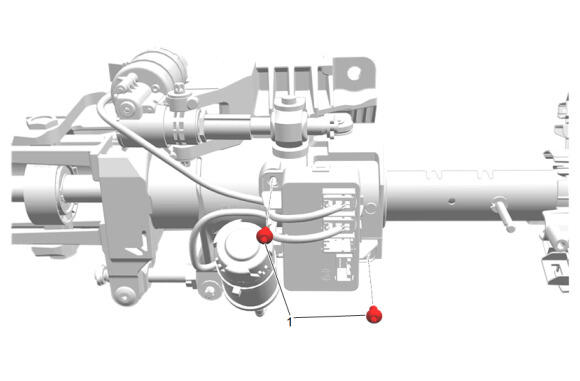

Steering Column Tilt Wheel and Telescope Control Module
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Control Module Bracket Bolt [2x] |
- |
- |
2.5 N.m (22 lb in) |
Steering Column Tilt Wheel and Telescope Control Module Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|
Steering Wheel (Blackwing)
 Courtesy of GENERAL MOTORS COMPANY
|

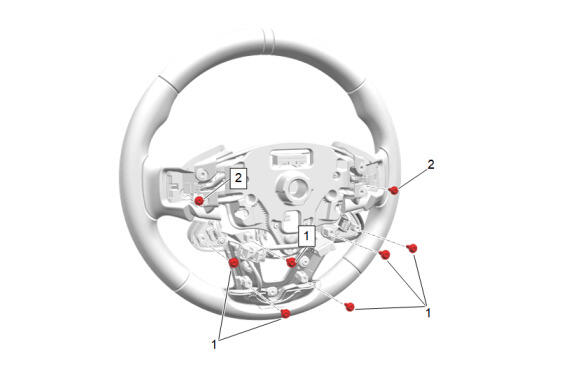

Steering Wheel (Blackwing and MG9)
 Courtesy of GENERAL MOTORS COMPANY
|

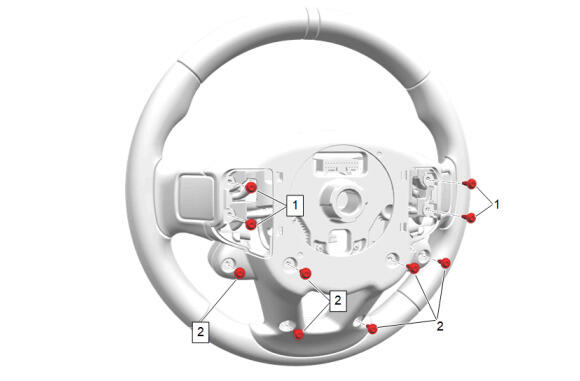

Steering Wheel (without Blackwing)
 Courtesy of GENERAL MOTORS COMPANY
|

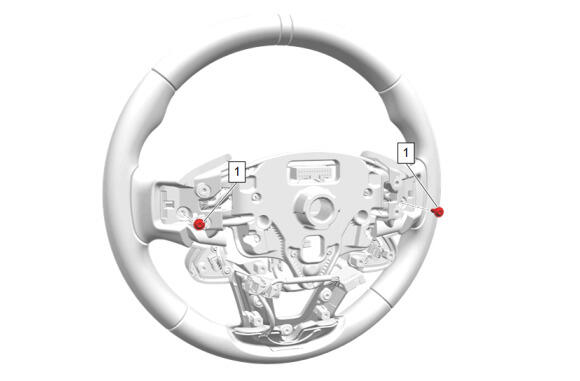

Steering Wheel Spoke Cover (MG9)
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Wheel Bolt @ Steering Wheel Spoke Cover [2x] |
- |
- |
1.8 N.m (16 lb in) |
Steering Wheel Spoke Cover Replacement (without Blackwing) , or Steering Wheel Spoke Cover Replacement (Blackwing with MHU) , or Steering Wheel Spoke Cover Replacement (Blackwing with MG9) |
| Intermediate Steering Shaft Boot Nut Sequence |
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Intermediate Steering Shaft Boot Nut [3x] |
- |
- |
9 N.m (80 lb in) |
Intermediate Steering Shaft Boot Replacement - Outer |
| Steering Column Nut Sequence |
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Nut [4x] |
- |
- |
22 N.m (16 lb ft) |
Steering Column Replacement (with N37) , or Steering Column Replacement (with N38) |
