Power, Ground, Serial Data and Front Controls

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

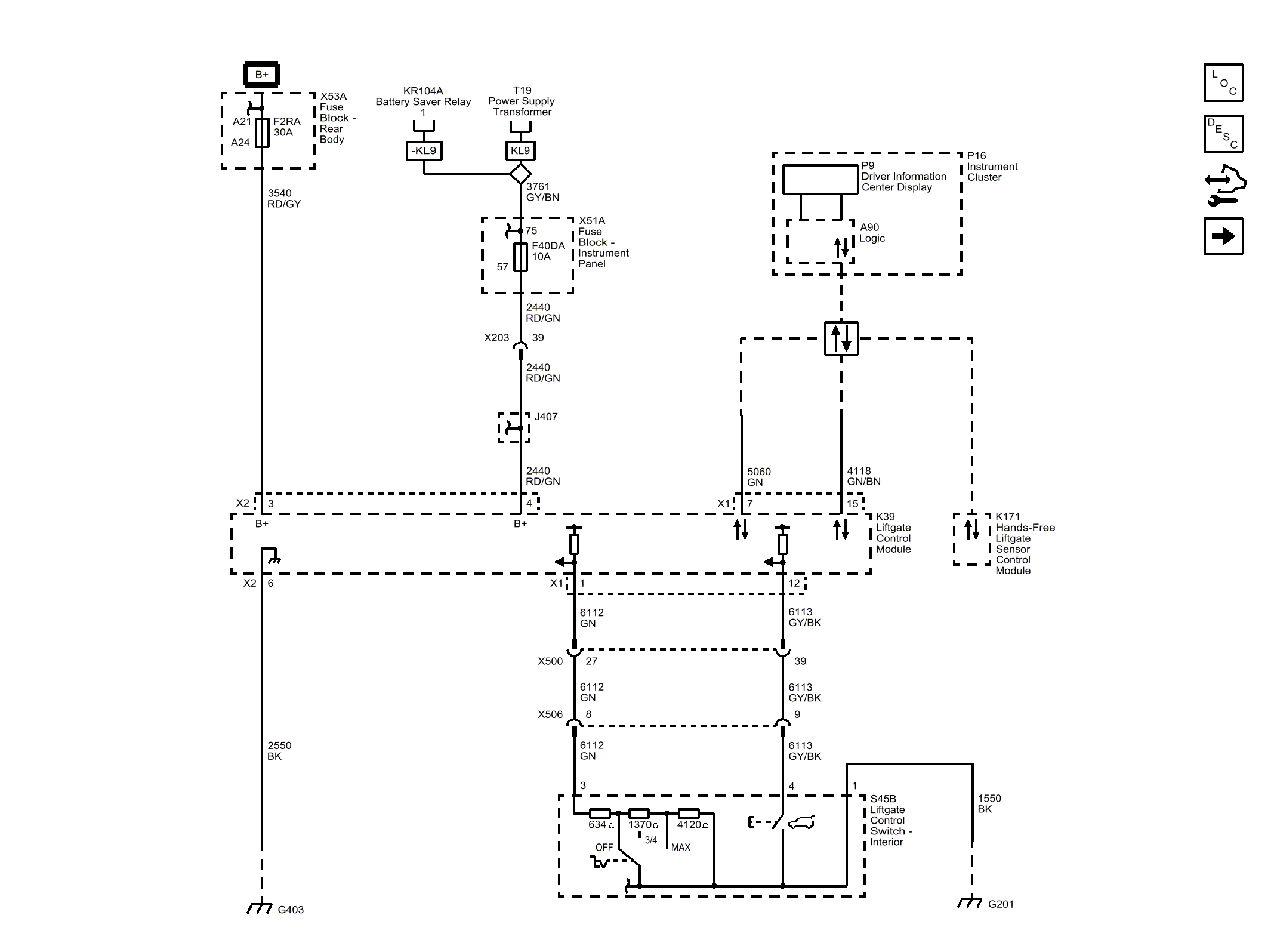

Fig 1: Power, Ground, Serial Data and Front Controls
GM4597230Courtesy of GENERAL MOTORS COMPANY
