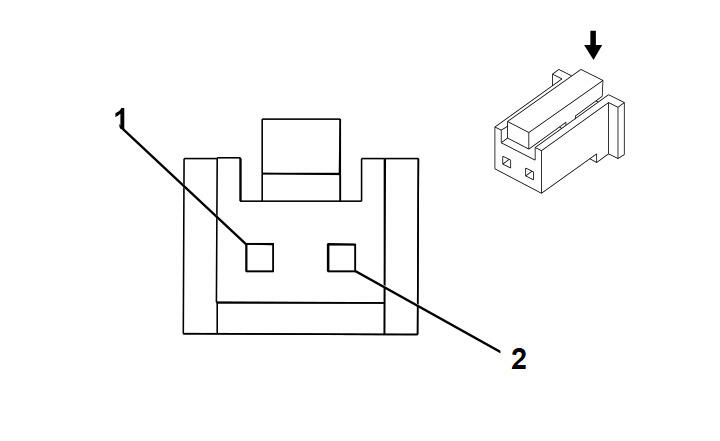

K180S Driver Monitoring System Module - Steering Wheel X9 (UKL)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Steering Wheel
- OEM Connector: PAP-02V-S
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 050 Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GN |
5883 |
Steering Wheel Heating Switch Signal |
I |
- |
| 2 |
- |
WH |
5884 |
Steering Wheel Heating Switch LED Control |
I |
- |
