Rear Vision Camera Description And Operation (IO5/IO6 With MAH/MBC): Notes

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

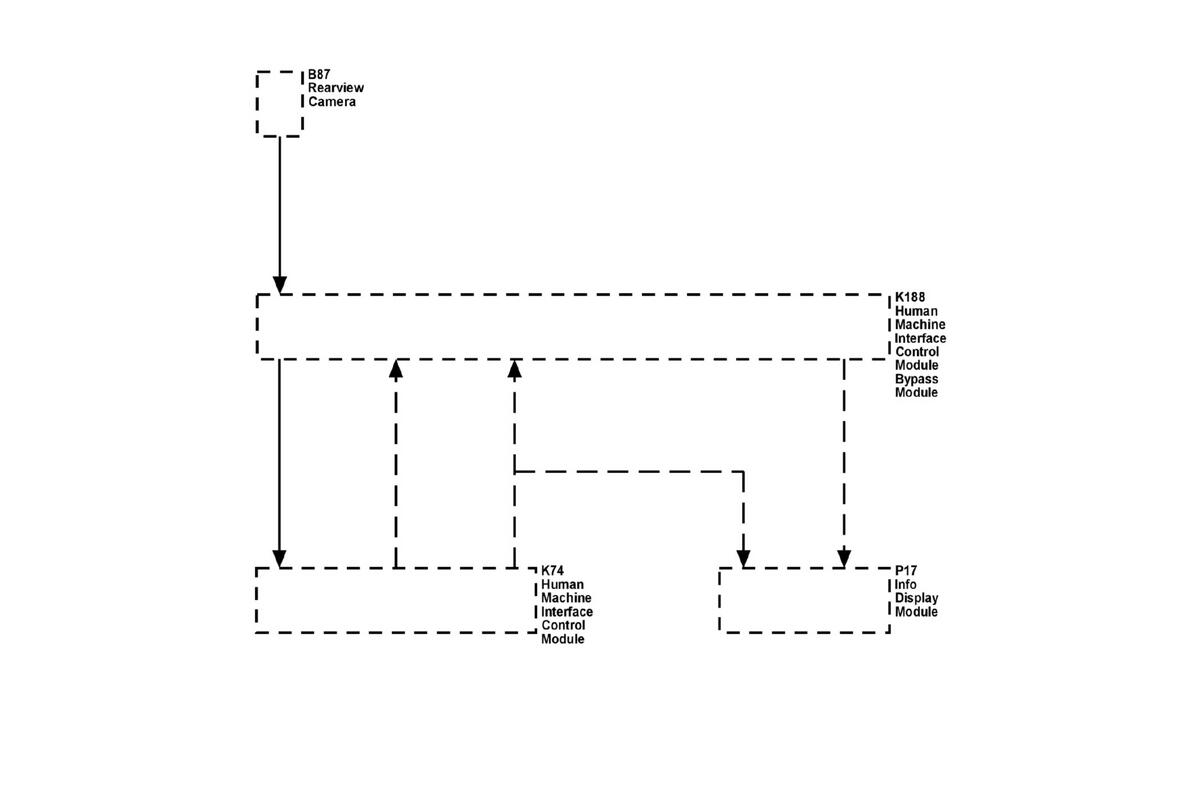

Fig 1: Rear Camera With VBM Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
K188	K188 Human Machine Interface Control Module Bypass Module
B87	B87 Rearview Camera
K74	K74 Human Machine Interface Control Module
P17	P17 Info Display Module
