K157 Video Processing Control Module X1 (UVH)
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

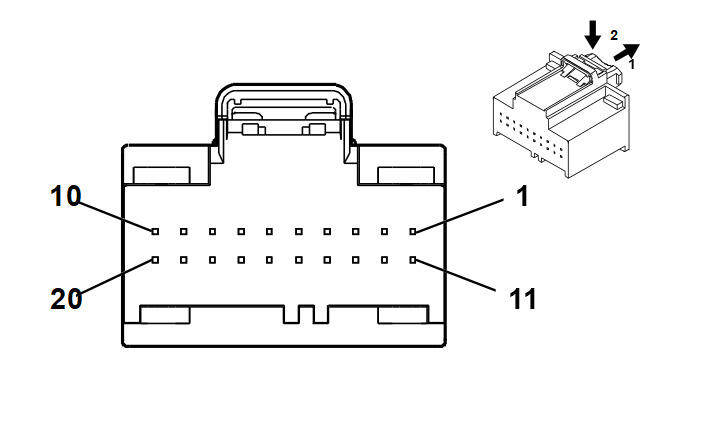

Connector Part Information
- Harness Type: Body
- OEM Connector: 31410-0205
- Service Connector: 13525990
- Description: 20-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| II |
13575867 |
J-35616-64B (LT BU) |
J-38125-215A |
SAIT-A03T-M064 |
Yazaki 14 |
P |
P |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
II |
UVH |
| 2 |
0.35 |
BN/BK |
6202 |
Camera Ground |
II |
UVH |
| 3 |
0.35 |
BK |
2150 |
Ground |
II |
UVH |
| 4 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
II |
UVH |
| 5 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
II |
UVH |
| 6 |
0.35 |
BK |
2150 |
Ground |
II |
UVH |
| 7 |
0.5 |
BK |
2150 |
Ground |
I |
UVH |
| 8 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
II |
UVH |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
II |
UVH |
| 12 |
0.35 |
BN/RD |
2063 |
6V Reference |
II |
UVH |
| 13 |
0.35 |
BN/RD |
2063 |
6V Reference |
II |
UVH |
| 14 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
II |
UVH |
| 15 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
II |
UVH |
| 16 |
0.35 |
BN/RD |
2063 |
6V Reference |
II |
UVH |
| 17 |
0.35 |
BN/RD |
2063 |
6V Reference |
II |
UVH |
| 18 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
II |
UVH |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
