K40 Seat Memory Control Module X1 (AAB)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

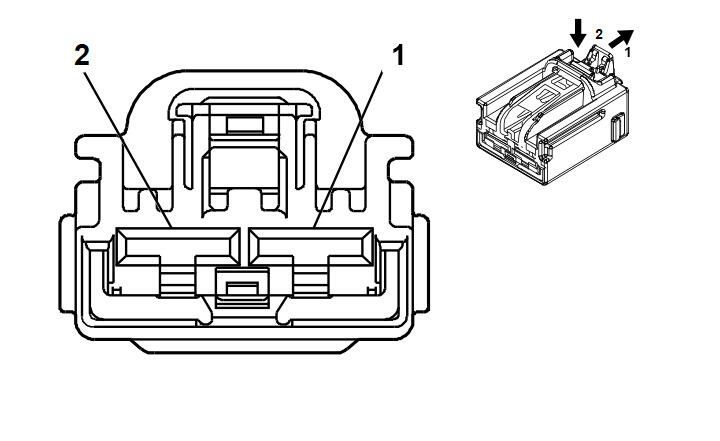

Connector Part Information
- Harness Type: Front Seat Wiring Harness - Driver
- OEM Connector: 7289-7782-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 6.3 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD/GN |
5140 |
Battery Positive Voltage |
I |
|
| 2 |
2.5 |
RD/YE |
5040 |
Battery Positive Voltage |
I |
|
