Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Ride Mode Controls (With EPH)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

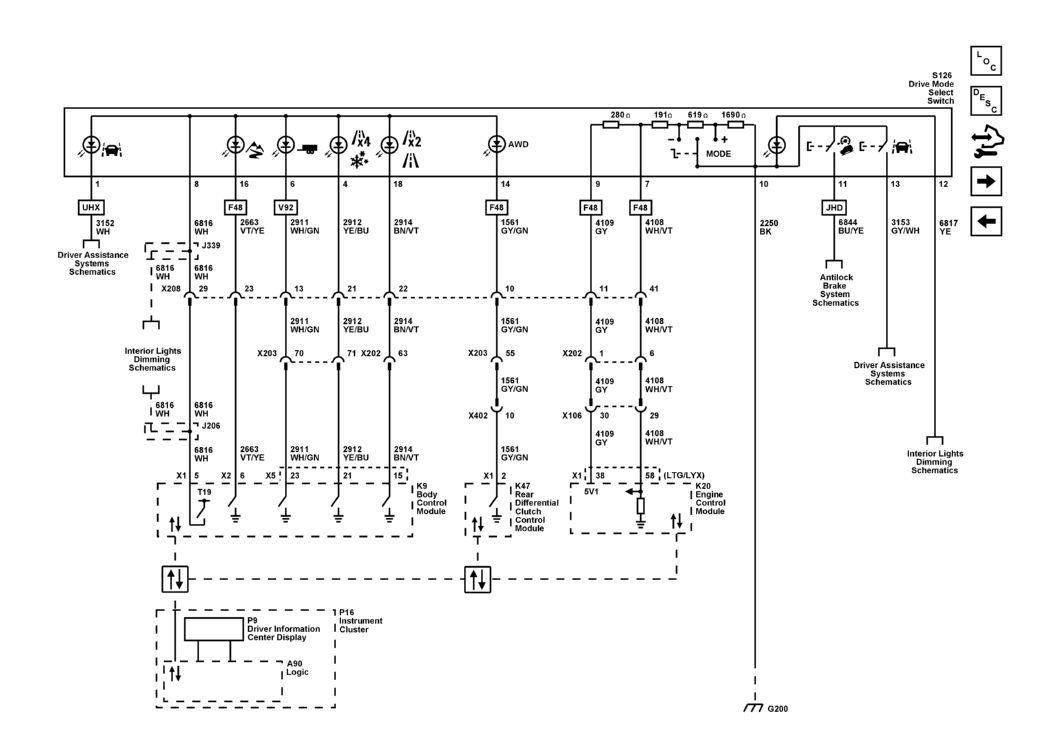

Ride Mode Controls (With EPH)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
