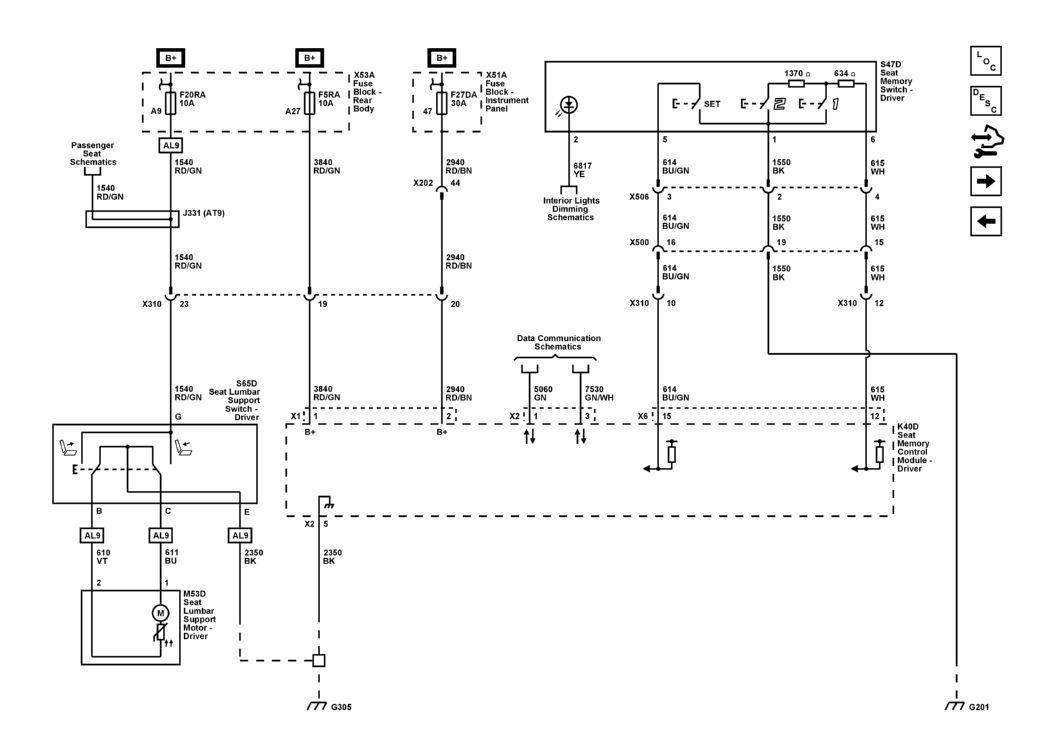

Module Power, Ground, Serial Data, and Memory Controls (A45 or A74)

GM5491301Courtesy of GENERAL MOTORS COMPANY
