Installation Procedure

  1. GM4596023Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install
  3. GM4596025Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Transfer Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Electrical Connector (1) - Connect
  6. GM4596021Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH 52075  Fuel Sender Lock Ring Wrench

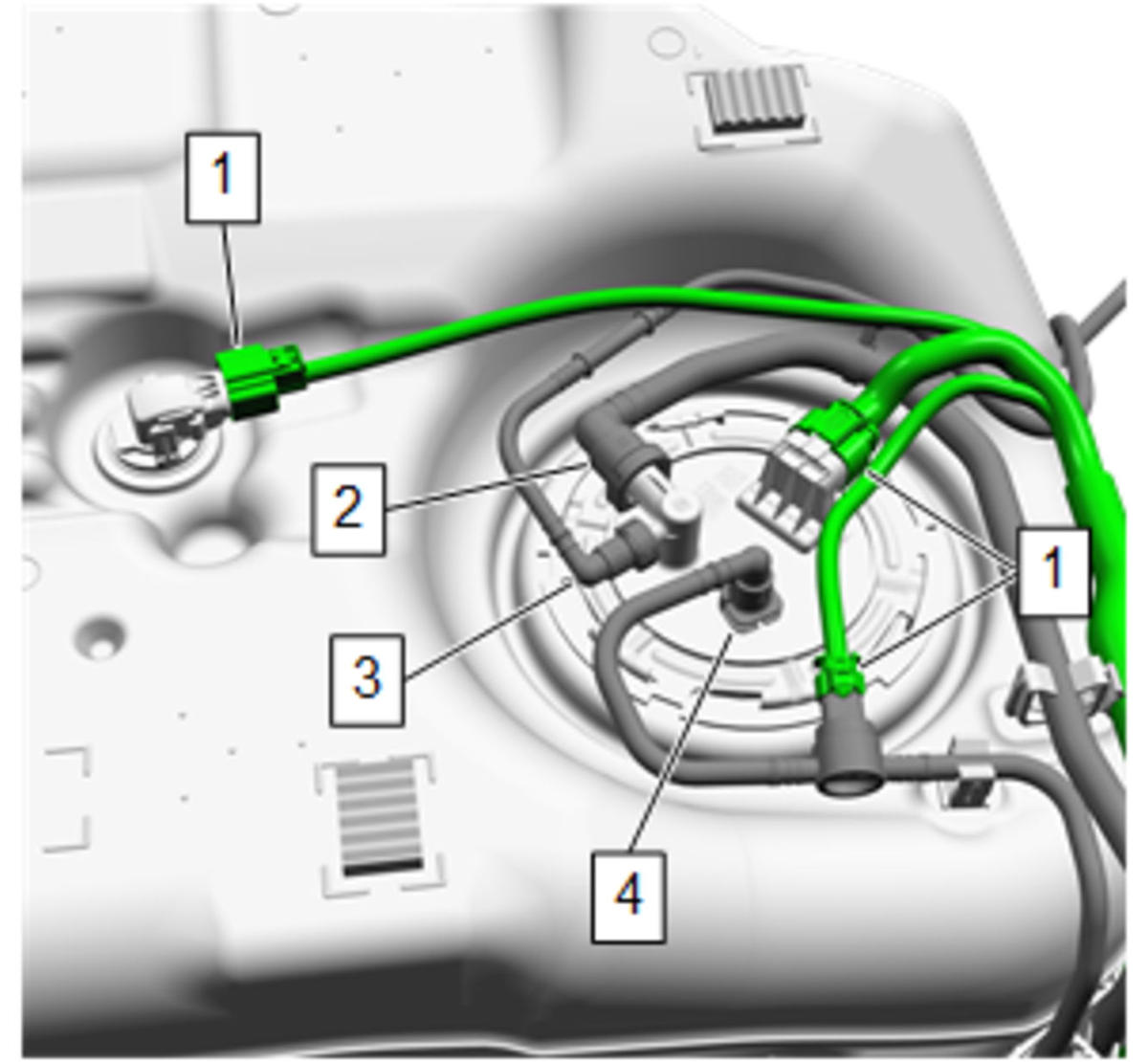

  7. GM5539165Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  8. Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  9. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  10. Electrical Connector (1) - Connect [ 3x ]
  11. Fuel Tank - Install - Fuel Tank Replacement (AWD)
