Installation Procedure

  1. GM4596018Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install
  3. GM4596019Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

  4. GM4596017Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH 52075  Fuel Sender Lock Ring Wrench

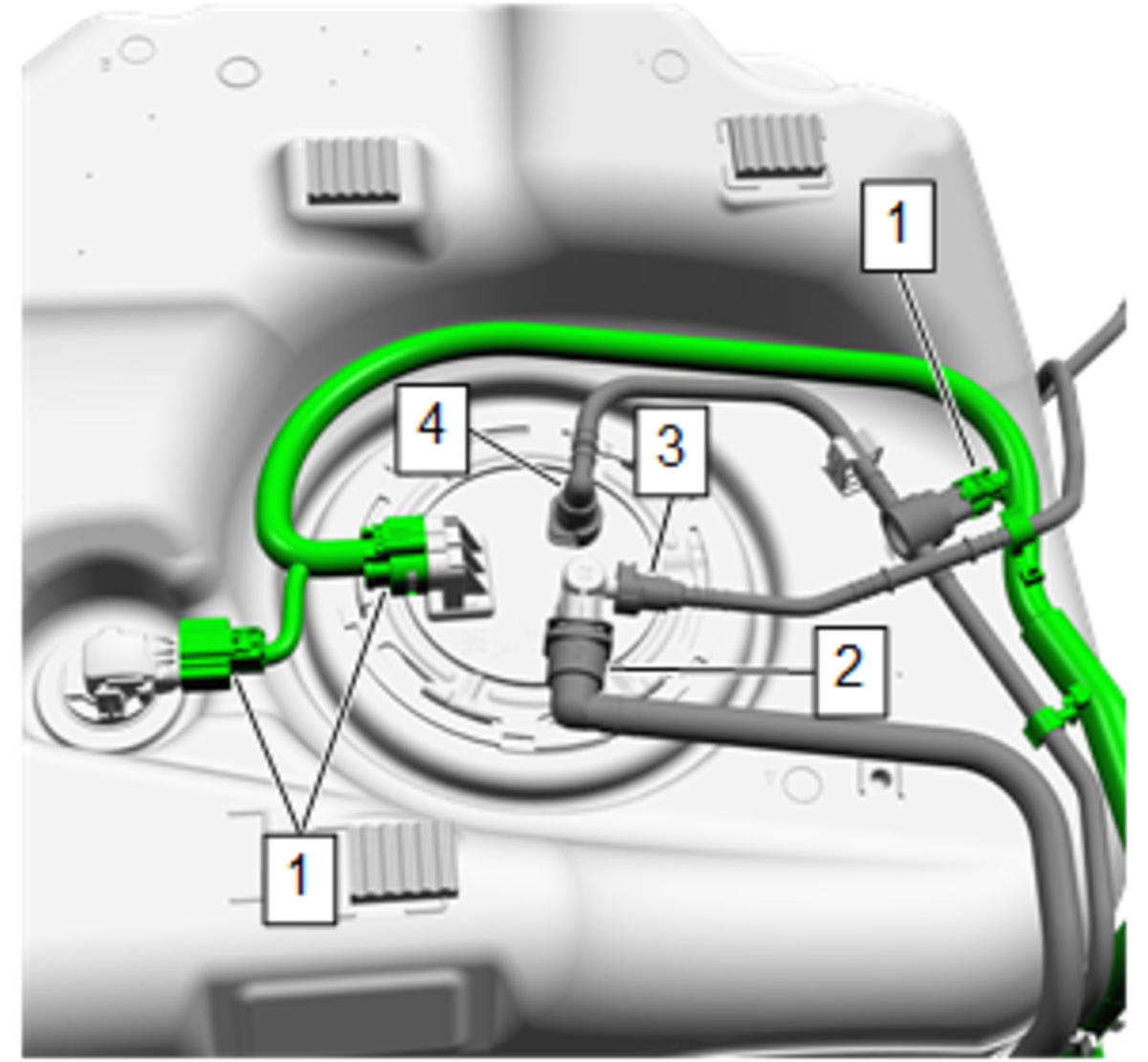

  5. GM5539164Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
  7. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  8. Electrical Connector (1) - Connect [ 3x ]
  9. Fuel Tank - Install - Fuel Tank Replacement (FWD)
