Headlamp Automatic Control Module Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

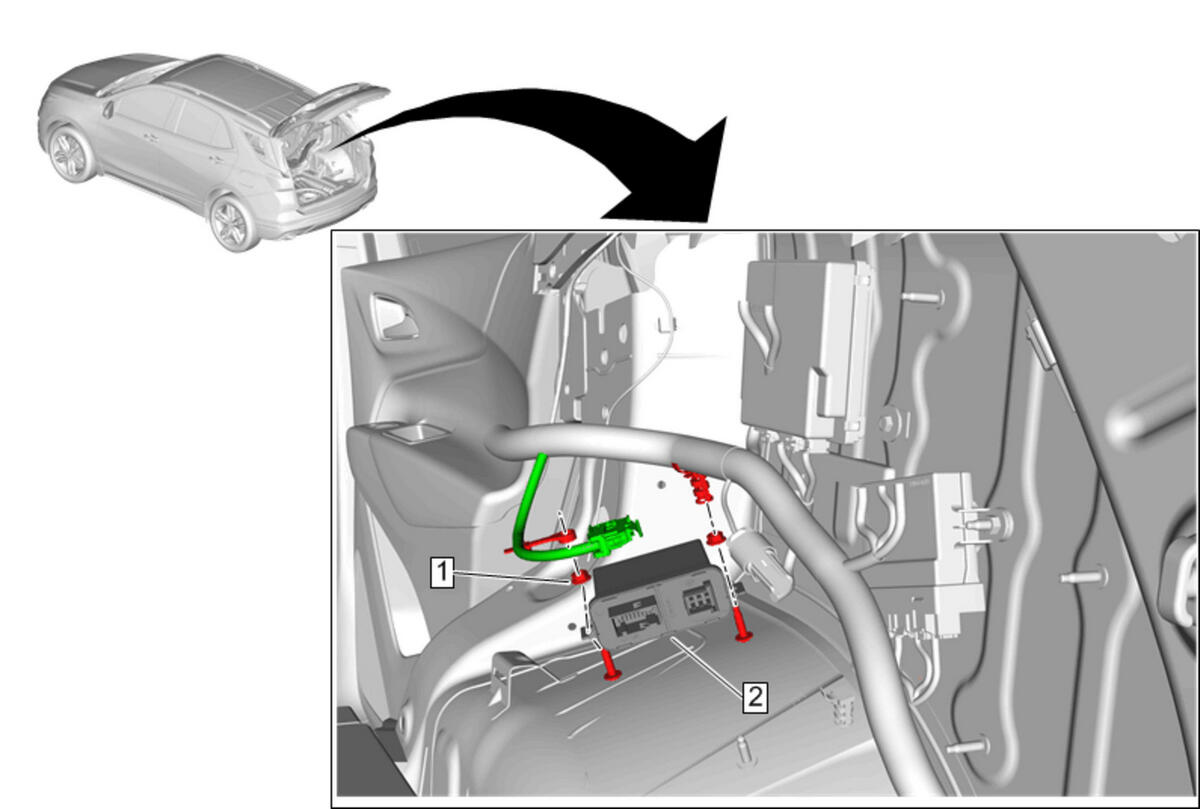

Callout	Component Name
Preliminary Procedure Remove the right side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement (Left Side) , or Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Headlamp Control Module Nut[2x] CAUTION: Refer to Fastener Caution Tighten 6 N.m (53 lb in)
2	Headlamp Control Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove the right side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement (Left Side) , or Quarter Lower Rear Trim Panel Replacement (Right Side)

Headlamp Control Module Nut[2x]

CAUTION:

Refer to Fastener Caution

Tighten
6 N.m (53 lb in)

Headlamp Control Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure:Control Module References
