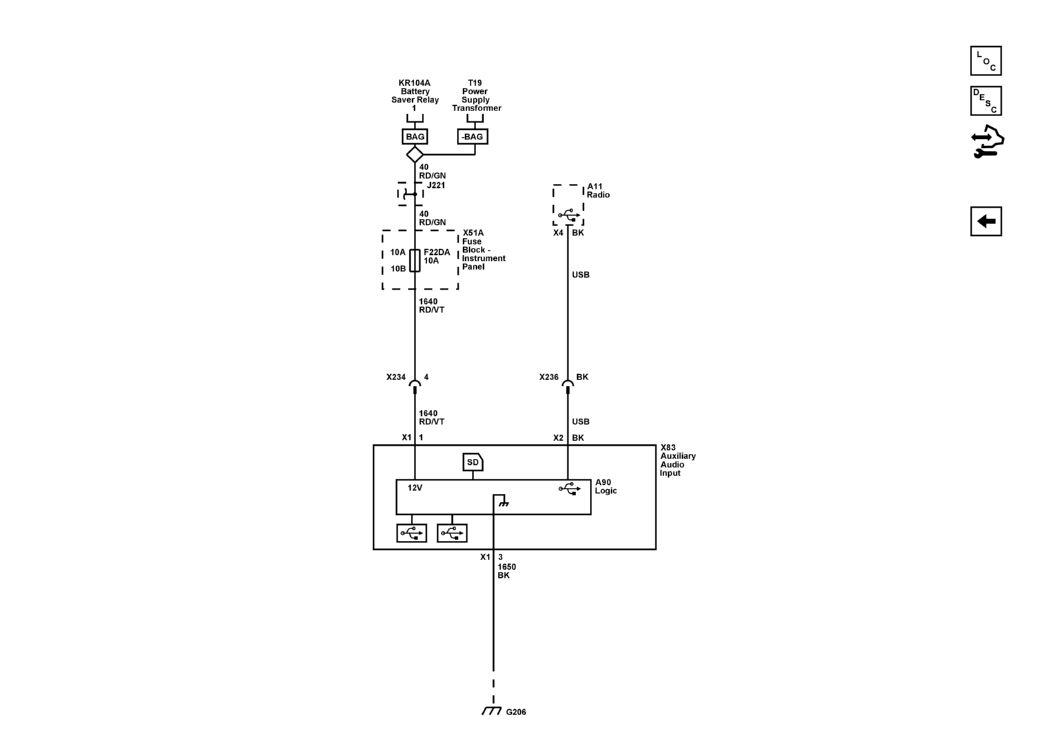

Auxiliary Inputs (IOS/IOT)

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
GM5726799Courtesy of GENERAL MOTORS COMPANY
