Active Safety Control Module Bracket Replacement
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

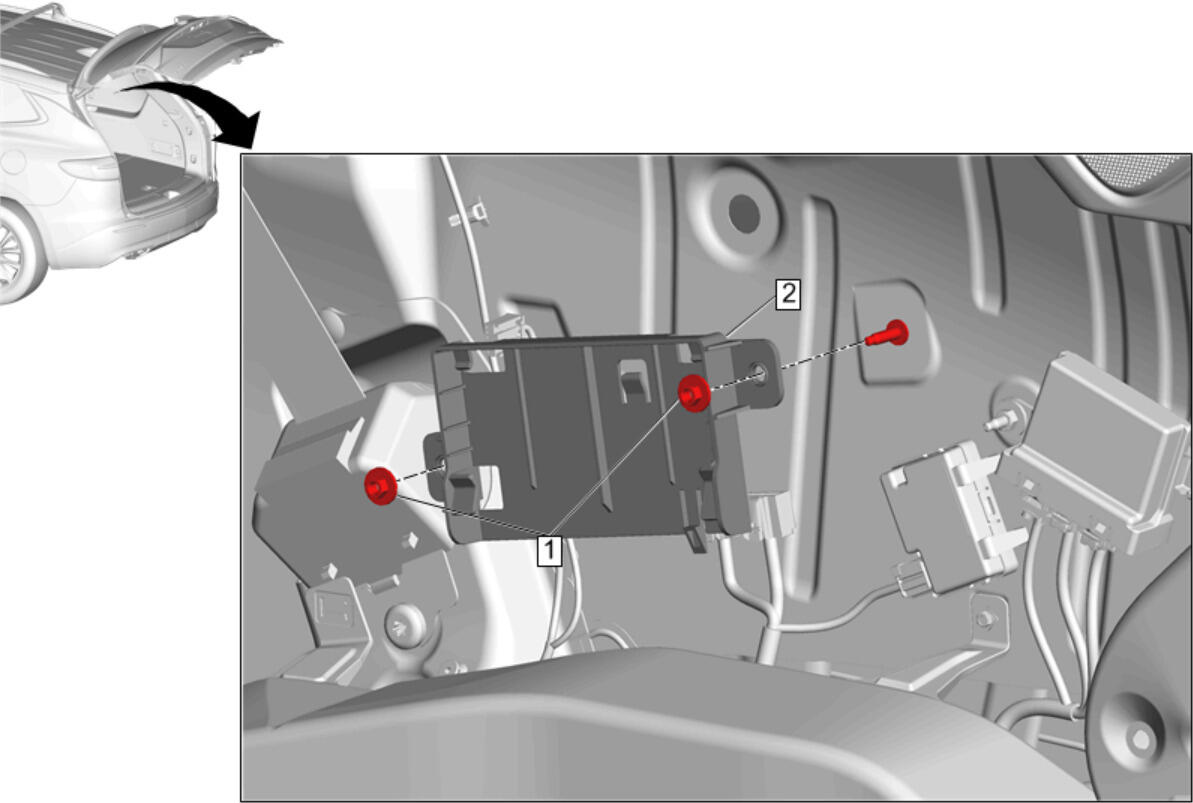

| Callout | Component Name |
|---|---|
| Preliminary Procedure Image Processing Module Replacement |
|
| 1 | Active Safety Control Module Bracket Nut [ 2x ]
CAUTION:
Tighten 9 N.m (80 lb/in) |
| 2 | Active Safety Control Module Bracket |
