P17 Info Display Module X1
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

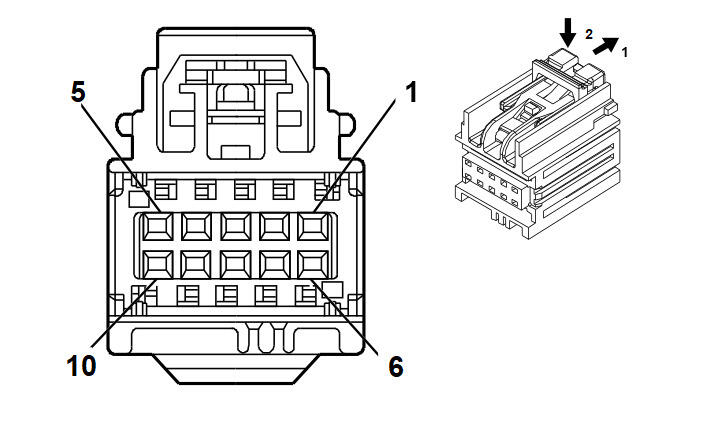

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13509648
- Service Connector: 13509648
- Description: 10-Way F 0.64 YESC Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19331015 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / BU |
3240 |
Battery Positive Voltage |
I |
IOS |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY / GN |
1102 |
Low Speed GMLAN Serial Data 2 |
I |
IOS |
| 4 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
BK |
1551 |
Signal Ground |
I |
IOS |
