Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

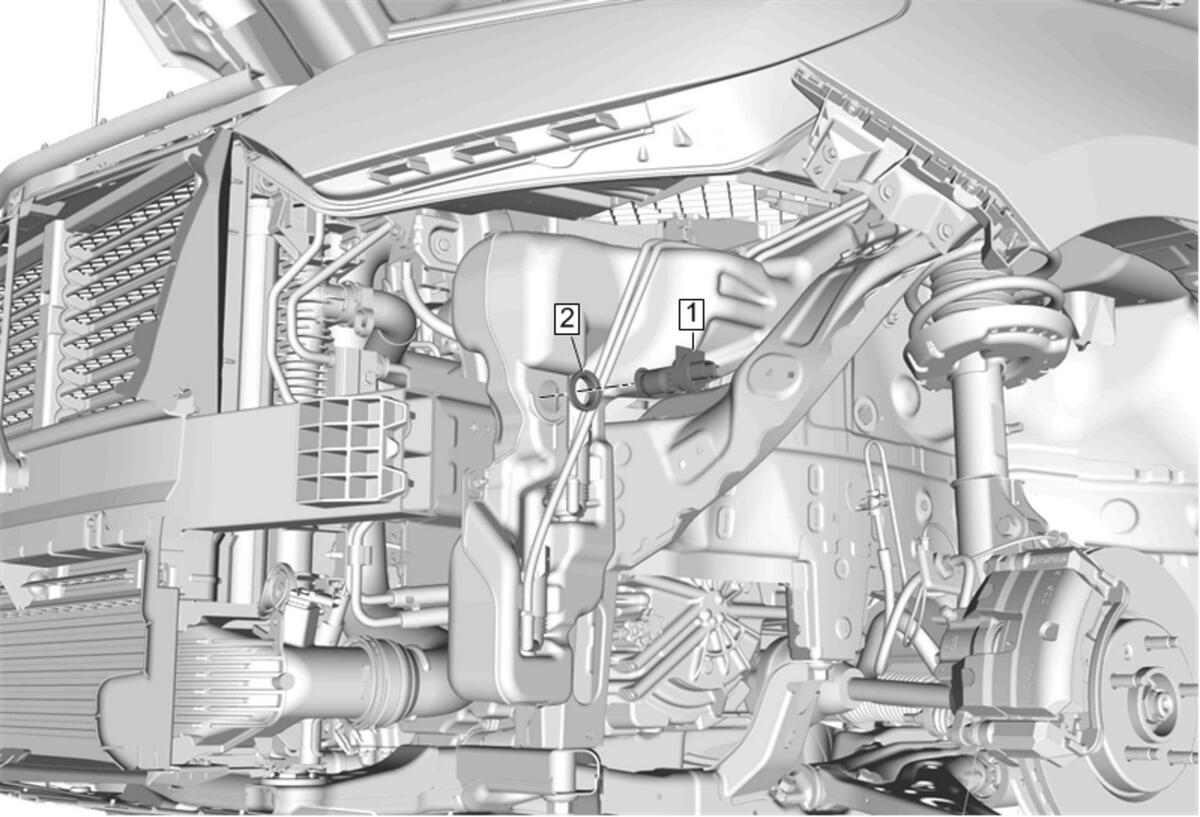

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain) Place a clean suitable drain pan under the windshield washer solvent container.
1	Windshield Washer Solvent Container Level Sensor Procedure Disconnect the electrical connector. Using two flat-bladed tools placed under each side of the level sensor, disengage the level sensor from the washer container.
2	Windshield Washer Solvent Container Level Sensor Grommet Procedure Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container. NOTE: Install a new grommet. DO NOT reuse the old grommet.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
Place a clean suitable drain pan under the windshield washer solvent container.

Windshield Washer Solvent Container Level Sensor

Procedure

Disconnect the electrical connector.
Using two flat-bladed tools placed under each side of the level sensor, disengage the level sensor from the washer container.

Windshield Washer Solvent Container Level Sensor Grommet
Procedure
Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container.

NOTE:

Install a new grommet. DO NOT reuse the old grommet.
