Power Transfer Unit Actuator, Seal And Bolt Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

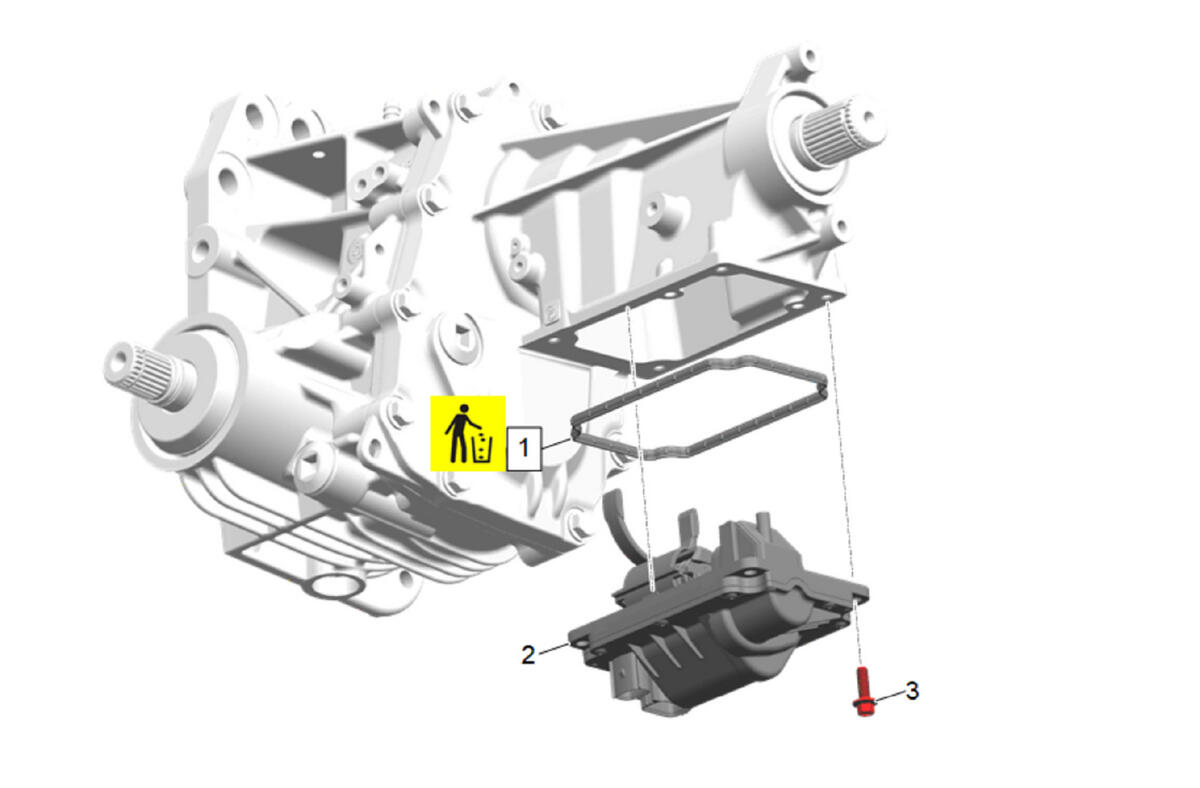

Power Transfer Unit Actuator, Seal and Bolt Installation
| Callout |
Component Name |
| 1 |
Power Transfer Unit Shift Actuator Seal
Procedure
Install a NEW seal. |
| 2 |
Power Transfer Unit Shift Actuator |
| 3 |
Power Transfer Unit Shift Actuator Bolt [ 4x ]
Tighten
9 N.m (80 lb/in) |
