Power Transfer Unit Propeller Shaft Seal, O-Ring And Retainer Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

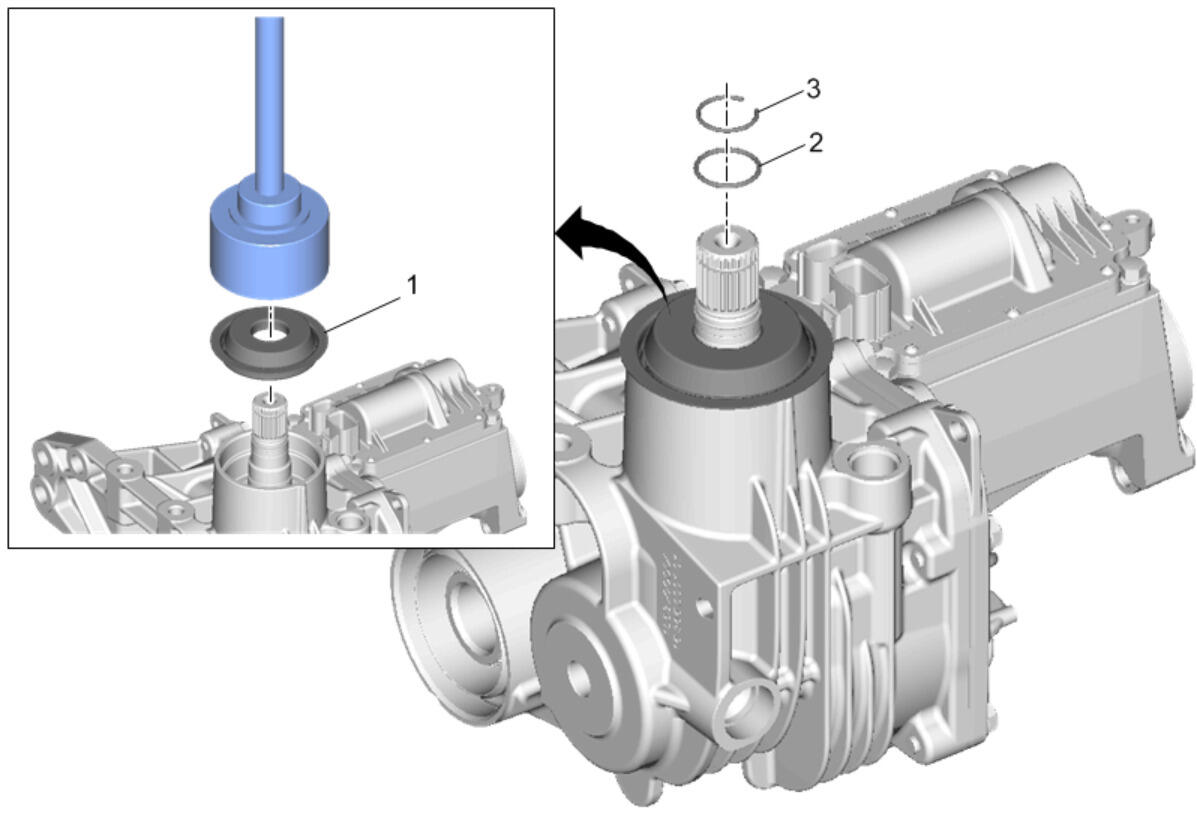

Power Transfer Unit Propeller Shaft Seal, O-ring and Retainer Installation

Callout	Component Name
1	Power Transfer Unit Propeller Shaft Seal Procedure Install a NEW seal. Make sure the seal bore is clean and free of oil or dirt. Special Tools DT-51467 - A Seal Installer DT-305 - 1 Driver Handle Equivalent regional tools : Special Tools
2	Power Transfer Unit Propeller Shaft Seal O-Ring Procedure Install a NEW seal.
3	Power Transfer Unit Propeller Shaft Retainer Procedure When installing a NEW half shaft retaining clip, open the clip only as far as necessary to fit the clip over the shaft. Opening the clip too far will damage it. Start one end of the clip in the shaft groove and slowly push the clip onto and over the shaft. Do NOT reuse the half shaft retaining clip. Install a NEW retainer.

Callout

Component Name

Power Transfer Unit Propeller Shaft Seal

Procedure

Special Tools

Equivalent regional tools : Special Tools

Power Transfer Unit Propeller Shaft Seal O-Ring
Procedure
Install a NEW seal.

Power Transfer Unit Propeller Shaft Retainer

Procedure

When installing a NEW half shaft retaining clip, open the clip only as far as necessary to fit the clip over the shaft. Opening the clip too far will damage it.
Start one end of the clip in the shaft groove and slowly push the clip onto and over the shaft.
Do NOT reuse the half shaft retaining clip.
Install a NEW retainer.
