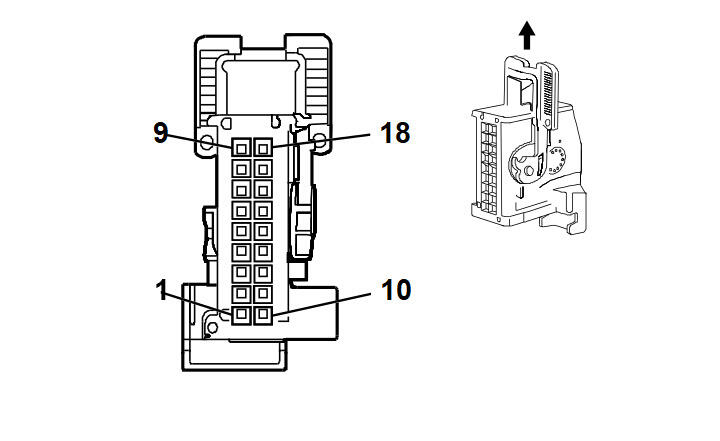

K157 Video Processing Control Module X1 (UV2)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 1379102-1
- Service Connector: 84976200
- Description: 18 -Way F Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19300632 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / WH |
640 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
1950 |
Ground |
I |
- |
| 4 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
GY / GN |
1102 |
Low Speed GMLAN Serial Data 2 |
I |
- |
| 10 |
0.35 |
RD / WH |
640 |
Battery Positive Voltage |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BK |
1950 |
Ground |
I |
- |
| 13 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
