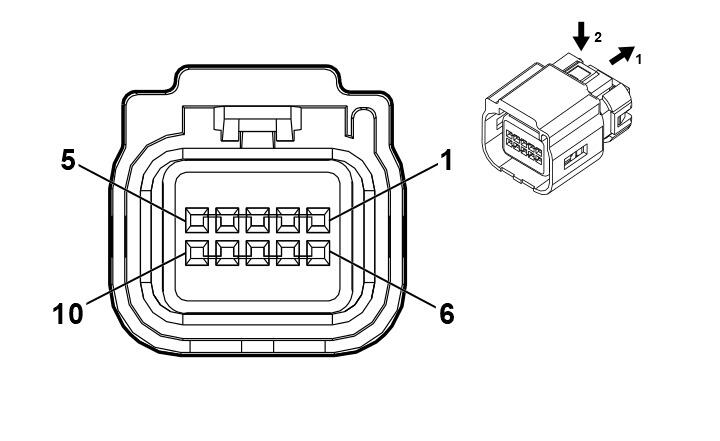

K43 Power Steering Control Module X3
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Power Steering Shaft Torque/Position Sensor
- OEM Connector: 13817799
- Service Connector: Service by Harness -
- Description: 10-Way F 0.64 Kaizen Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
8367 |
Handwheel Channel A Torque Pressure Sensor 1 SENT Signal |
I |
- |
| 2 |
0.5 |
RD |
8366 |
Handwheel Channel A High Reference |
I |
- |
| 3 |
0.5 |
BK |
8370 |
Handwheel Channel A Low Reference |
I |
- |
| 4 |
0.5 |
WH / RD |
8371 |
Handwheel Channel B High Reference |
I |
- |
| 5 |
0.5 |
WH / BU |
8372 |
Handwheel Channel B Torque Pressure Sensor 1 SENT Signal |
I |
- |
| 6 |
0.5 |
VT |
8368 |
Handwheel Channel A Torque Pressure Sensor 2 SENT Signal |
I |
- |
| 7 |
0.5 |
OG |
8369 |
Handwheel Channel A Angle Position Sensor SENT Signal |
I |
- |
| 8 |
0.5 |
GY |
8375 |
Handwheel Channel B Low Reference |
I |
- |
| 9 |
0.5 |
YE |
8374 |
Handwheel Channel B Angle Position Sensor SENT Signal |
I |
- |
| 10 |
0.5 |
GN |
8373 |
Handwheel Channel B Torque Pressure Sensor 2 SENT Signal |
I |
- |
