Installation Procedure

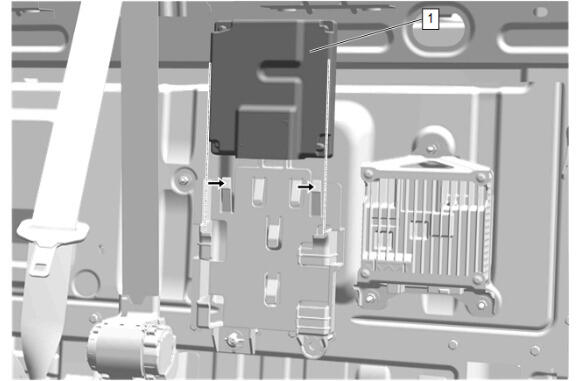

Image Processing Module (1) - Install
- Secure the retaining tabs.

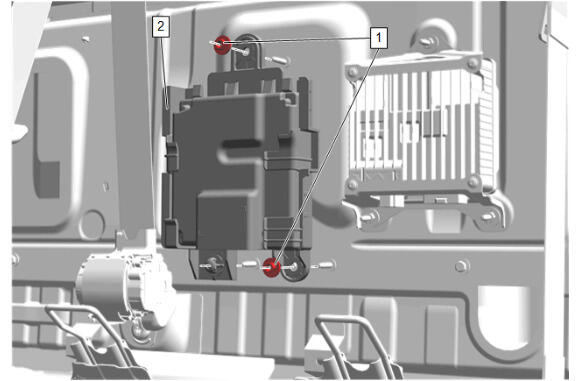

Active Safety Control Module Bracket (2) - Install
- Install and tighten the upper active safety control module bracket nut (1). Fastener Specifications
- Connect the electrical connectors.

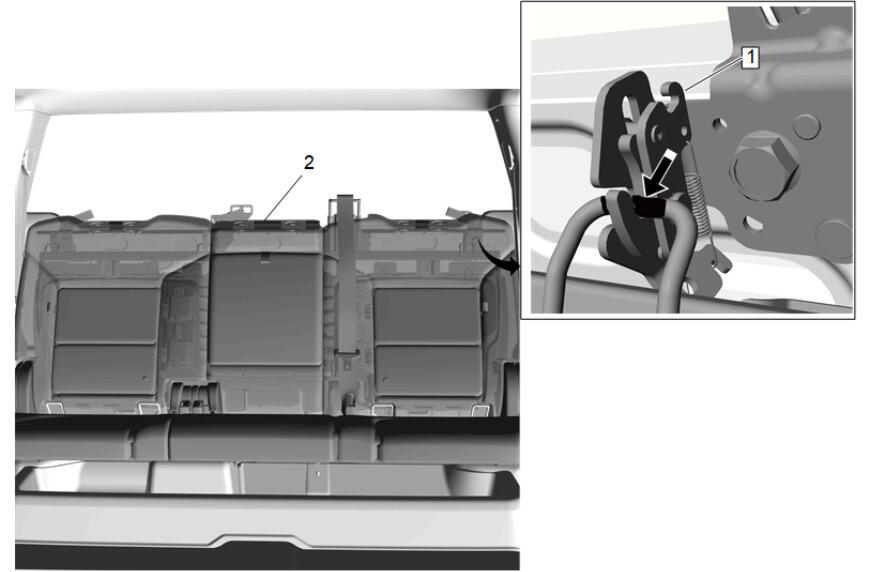

Rear Seat Back Cushion (2) - Install - Rear Seat Back Cushion Removal and Installation
- Perform the necessary programming and setup procedure: Control Module References
CAUTION:
Refer to Fastener Caution .
