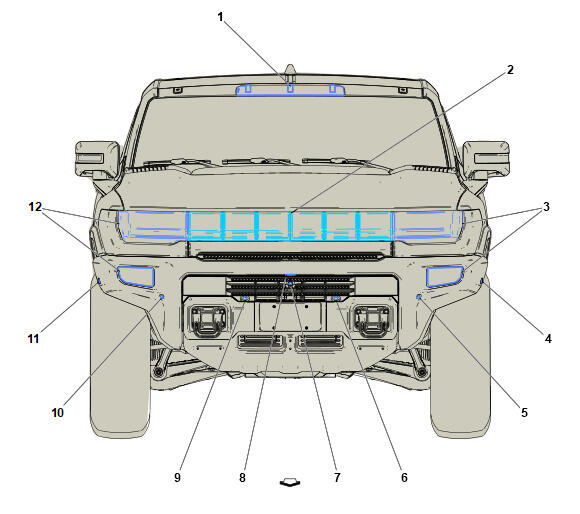

Front of Vehicle Components

GM5879387Courtesy of GENERAL MOTORS COMPANY
Front of Vehicle Components

Components
1. E3FA Front Identification Lamp E3FA Front Identification Lamp
2. E135 Front Bumper Fascia Auxiliary Signal Lamp E135 Front Bumper Fascia Auxiliary Signal Lamp
3. E13LA Front Headlamp - Left E13LA Front Headlamp - Left
4. B166LF Advanced Parking Assist Alarm Sensor - Left Front B166LF Advanced Parking Assist Alarm Sensor - Left Front
5. B306A Parking Assist Alarm Sensor - Front Left Outer B306A Parking Assist Alarm Sensor - Front Left Outer
6. B306B Parking Assist Alarm Sensor - Front Left Middle B306B Parking Assist Alarm Sensor - Front Left Middle
7. B174G Front View Driver Information Camera - Grille B174G Front View Driver Information Camera - Grille
8. S191 Front Stowage Compartment Cover Latch Release Switch S191 Front Stowage Compartment Cover Latch Release Switch
B306C Parking Assist Alarm Sensor - Front Right Middle B306C Parking Assist Alarm Sensor - Front Right Middle
B306D Parking Assist Alarm Sensor - Front Right Outer B306D Parking Assist Alarm Sensor - Front Right Outer
B166RF Advanced Parking Assist Alarm Sensor - Right Front B166RF Advanced Parking Assist Alarm Sensor - Right Front
E13RA Front Headlamp - Right E13RA Front Headlamp - Right
