Headlamp Modules

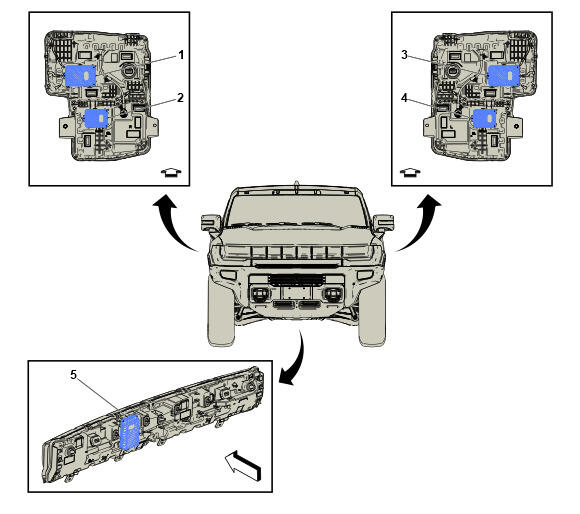

GM5877852Courtesy of GENERAL MOTORS COMPANY
Headlamp Modules

Components
1. K221RU Headlamp LED Driver Module - Right Upper K221RU Headlamp LED Driver Module - Right Upper
2. K221RL Headlamp LED Driver Module - Right Lower K221RL Headlamp LED Driver Module - Right Lower
3. K221LU Headlamp LED Driver Module - Left Upper K221LU Headlamp LED Driver Module - Left Upper
4. K221LL Headlamp LED Driver Module - Left Lower K221LL Headlamp LED Driver Module - Left Lower
5. K292 Front Fascia Lamp LED Driver Module
