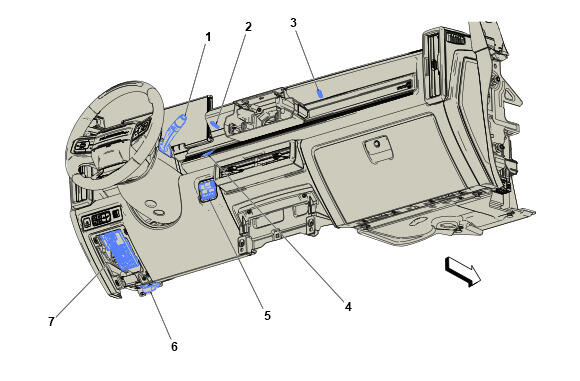

Instrument Panel Components - Rear Lower

GM5876970Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components - Rear Lower

Components
1. S82 Windshield Wiper and Windshield Washer Switch S82 Windshield Wiper and Windshield Washer Switch
2. B355LF Communication Interface Module Microphone - Left Front B355LF Communication Interface Module Microphone - Left Front
3. B355RF Communication Interface Module Microphone - Right Front B355RF Communication Interface Module Microphone - Right Front
4. S38 On/Off Vehicle Switch S38 On/Off Vehicle Switch
5. S76 Trailer Brake Control Switch S76 Trailer Brake Control Switch
6. X84 Data Link Connector X84 Data Link Connector ( )
7. X51L Instrument Panel Wiring Harness Junction Block - Left X51L Instrument Panel Wiring Harness Junction Block - Left X1 ( ) , or X51L Instrument Panel Wiring Harness Junction Block - Left X2 , or X51L Instrument Panel Wiring Harness Junction Block - Left X3 , or X51L Instrument Panel Wiring Harness Junction Block - Left X4
