K43 Power Steering Control Module X4
 Courtesy of GENERAL MOTORS COMPANY
|

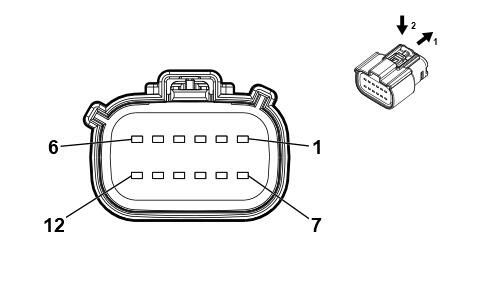

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13534791
- Service Connector: 19300601
- Description: 12-Way F 1.5 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368973 |
J-35616-14 (GN) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 4 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 5 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BU / YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 10 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
