Removal Procedure

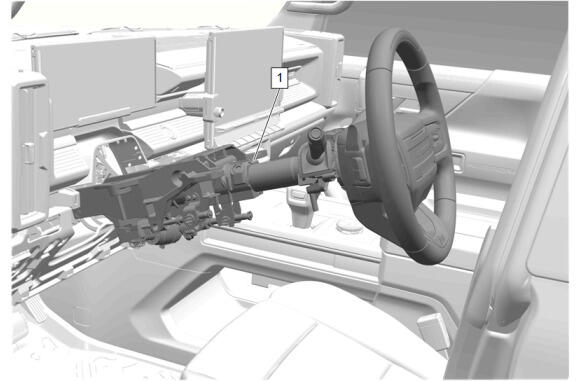

  1. GM5821310Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Remove - Steering Column Removal and Installation

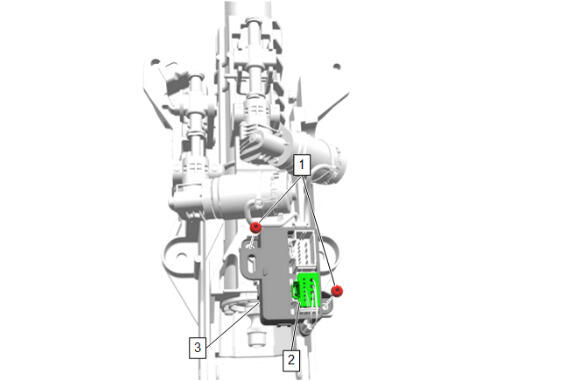

  2. GM5832345Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module Bracket Bolt (1) - Remove [2x]

  3. Disconnect the electrical connector. (2)

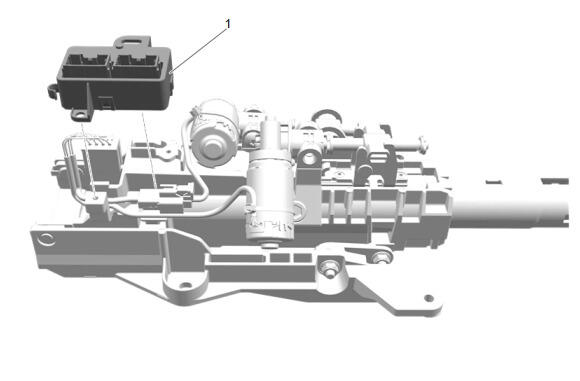

  4. GM5832346Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module (1) - Remove
