Drive Motor Power Inverter Module Connector Removal

Single Use Fasteners and Components

Drive Motor Power Inverter Module Connector [3x]

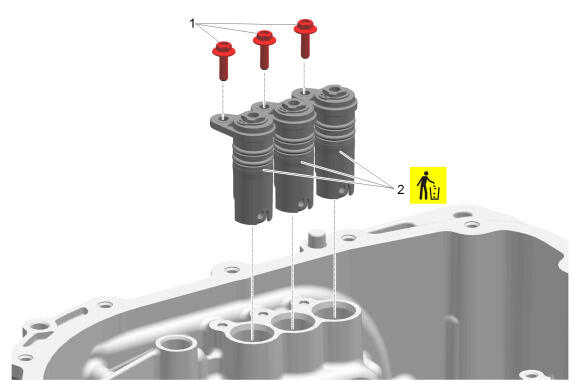

  1. GM5757471Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Connector Bolt (1) - Remove [3x]

  2. Drive Motor Power Inverter Module Connector (2) - Remove and DISCARD [3x]
