Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

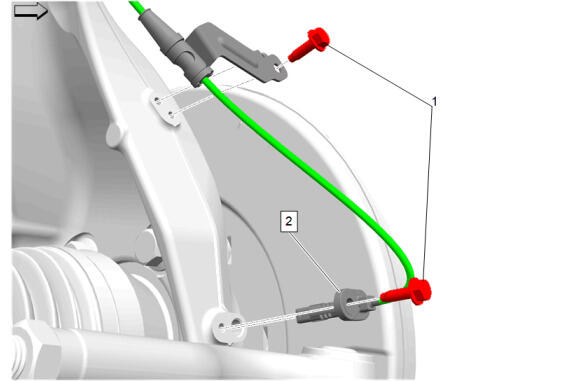

  3. GM5830322Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Bolt (1) - Remove [2x]

  4. Front Wheel Speed Sensor (2) @ Steering Knuckle - Remove
  5. GM5830321Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (4)

  6. Front Wheel Speed Sensor Retainer (3) - Remove
  7. Front Wheel Speed Sensor Bolt (1) - Remove [3x]
  8. Front Wheel Speed Sensor (2) - Remove
