Behind Front Fascia Components

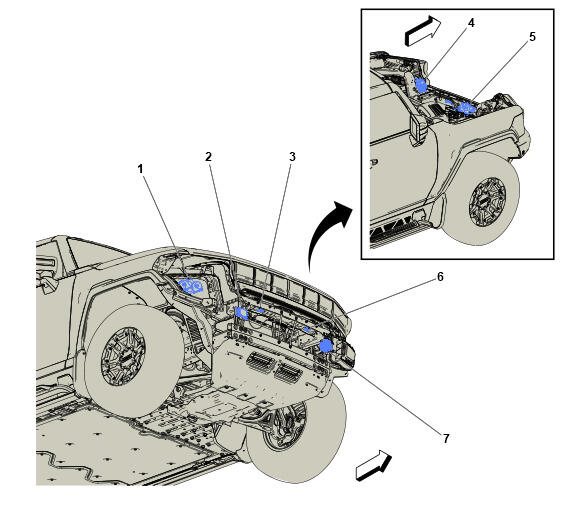

GM5883876Courtesy of GENERAL MOTORS COMPANY
Behind Front Fascia Components

Components
1. P13 Horn P13 Horn
2. B233B Forward Range Radar Sensor - Long Range B233B Forward Range Radar Sensor - Long Range
3. B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right
4. M144 Powertrain Compartment Cover Cinch Latch Motor M144 Powertrain Compartment Cover Cinch Latch Motor
5. B55 Engine Compartment Cover Switch B55 Engine Compartment Cover Switch
6. B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left
7. P48F Pedestrian Sound Alert Speaker - Front P48F Pedestrian Sound Alert Speaker - Front
