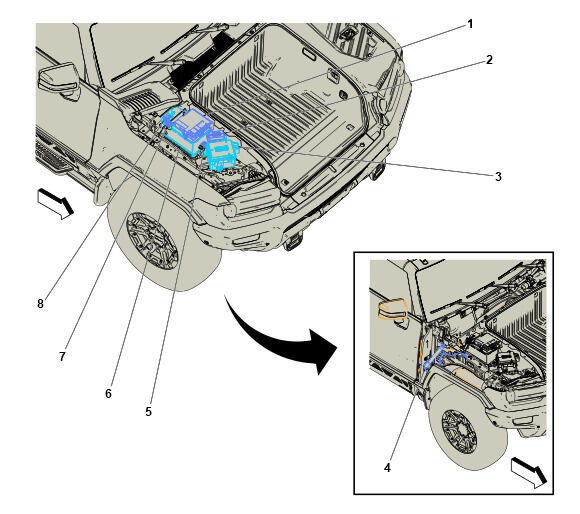

Front Compartment Components - Right Side
 Courtesy of GENERAL MOTORS COMPANY
|
Front Compartment Components - Right Side
| Components |
| 1. X50B Battery Distribution Engine Compartment Fuse Block X50B Battery Distribution Engine Compartment Fuse Block X1
, or X50B Battery Distribution Engine Compartment Fuse Block X10
, or X50B Battery Distribution Engine Compartment Fuse Block X11
, or X50B Battery Distribution Engine Compartment Fuse Block X2
, or X50B Battery Distribution Engine Compartment Fuse Block X3
, or X50B Battery Distribution Engine Compartment Fuse Block X4
, or X50B Battery Distribution Engine Compartment Fuse Block X5 ( )
, or X50B Battery Distribution Engine Compartment Fuse Block X6
, or X50B Battery Distribution Engine Compartment Fuse Block X7 (VBP)
, or X50B Battery Distribution Engine Compartment Fuse Block X9 |
| 2. X50UA Accessory Wiring Junction Block - Underhood (VBP) X50UA Accessory Wiring Junction Block - Underhood X0 (VBP)
, or X50UA Accessory Wiring Junction Block - Underhood X1 (VBP) |
| 3. X50A Engine Wiring Harness Junction Block X50A Engine Wiring Harness Junction Block X1
, or X50A Engine Wiring Harness Junction Block X2
, or X50A Engine Wiring Harness Junction Block X3
, or X50A Engine Wiring Harness Junction Block X4
, or X50A Engine Wiring Harness Junction Block X5 |
| 3. M145R Hood Power Assist Actuator - Right M145R Hood Power Assist Actuator - Right |
| 4. X79A Configurable/Accessory Provision Supply Connector (VBP) X79A Configurable/Accessory Provision Supply Connector (VBP) |
| 5. C1 Battery |
| 6. X75 Inline Connector - High Voltage Service Lockout X75 Inline Connector - High Voltage Service Lockout |
| 7. B110 Battery Monitor Module B110 Battery Monitor Module X1
, or B110 Battery Monitor Module X2 |
