Rear of Front Fascia Components

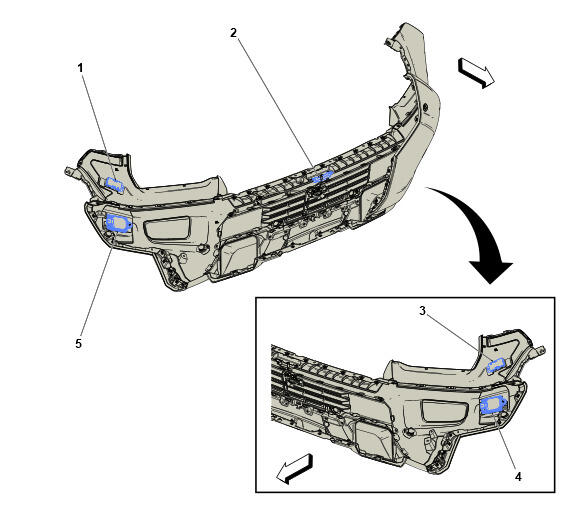

GM5875792Courtesy of GENERAL MOTORS COMPANY
Rear of Front Fascia Components

Components
1. B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 B342C UHF Low Energy Remote Control Access Sensor Transceiver 3
2. T10W Low Frequency Front Bumper Antenna T10W Low Frequency Front Bumper Antenna
3. B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 B342A UHF Low Energy Remote Control Access Sensor Transceiver 1
4. B233RF Short Range Radar Sensor - Right Front B233RF Short Range Radar Sensor - Right Front
5. B233LF Short Range Radar Sensor - Left Front B233LF Short Range Radar Sensor - Left Front
