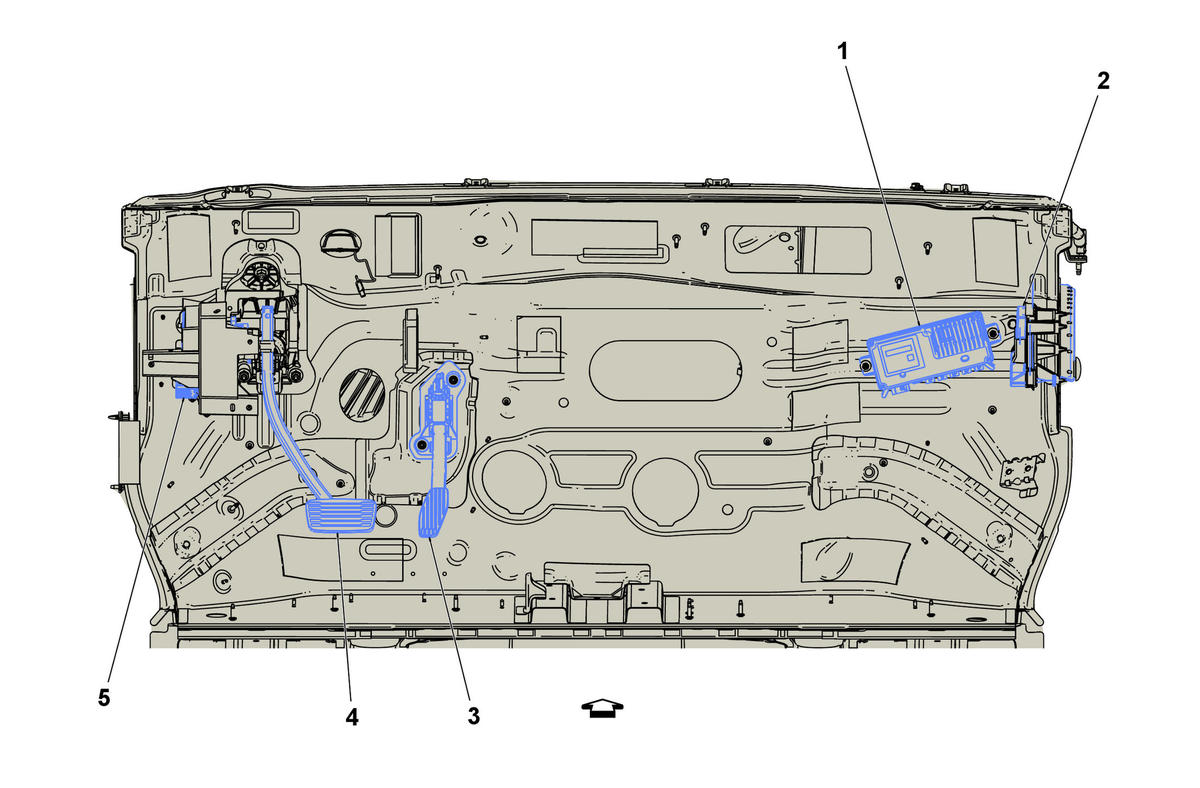

Passenger Compartment Components - Front Bulkhead Area
Passenger Compartment Components - Front Bulkhead Area
| Components |
|---|
| 1. K157 Video Processing Module K157 Video Processing Module X1 , or K157 Video Processing Module X3 , or K157 Video Processing Module X4 , or K157 Video Processing Module X5 , or K157 Video Processing Module X6 , or K157 Video Processing Module X7 |
| 2. K219 Lighting Control Module K219 Lighting Control Module X1 , or K219 Lighting Control Module X2 , or K219 Lighting Control Module X3 , or K219 Lighting Control Module X4 , or K219 Lighting Control Module X5 |
| 3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 4. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 5. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8 |
