Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainers as necessary.

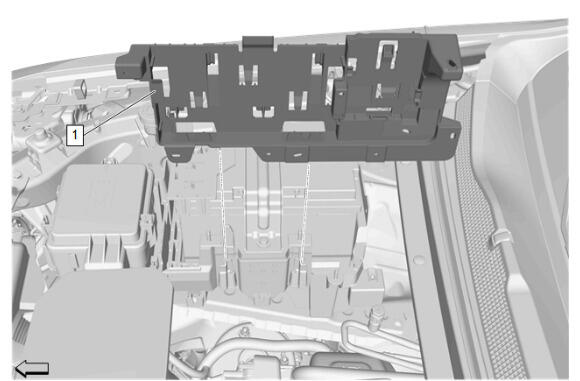

Engine Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Engine Control Module Bracket Nut (2) - Install and tighten - Fastener Specifications
Engine Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

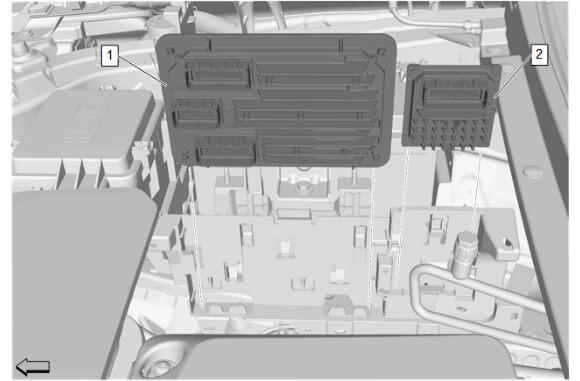

Transmission Control Module (2) - Install
Engine Control Module (1) - Install
Connect the electrical connectors and install the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block (2) - Install
Wiring Harness Clip (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

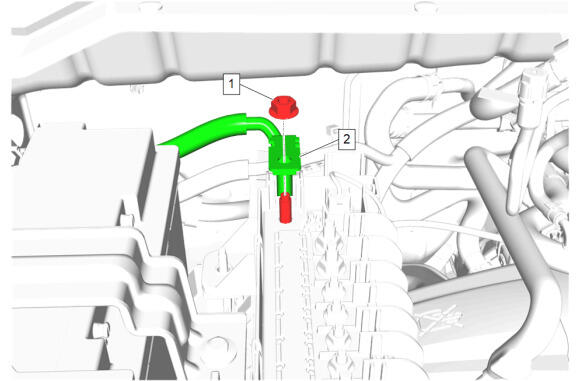

Battery Negative Cable (2) - Install
Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

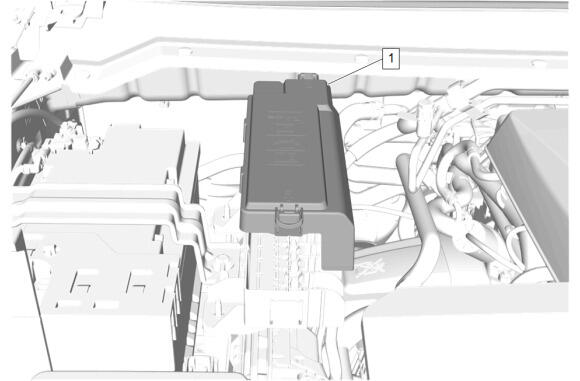

Secure the retaining tabs and install the battery distribution engine compartment fuse block cover (1).
Courtesy of GENERAL MOTORS COMPANY

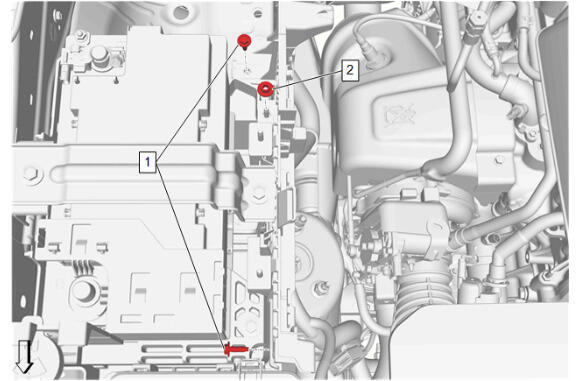

Battery Distribution Fuse Block Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
