Fastener Specifications

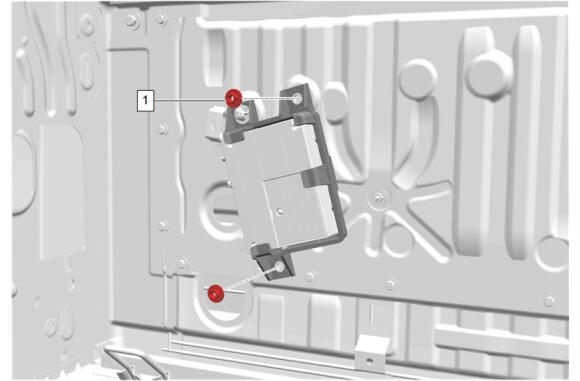

GM6622801Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Communication Interface Module Bracket Nut [2x] - - 9 N.m (80 lb in) Rear Sliding Window Regulator Replacement (GQH / GQI / GQO)
Rear Sliding Window Motor Replacement (GQH / GQI / GQO)

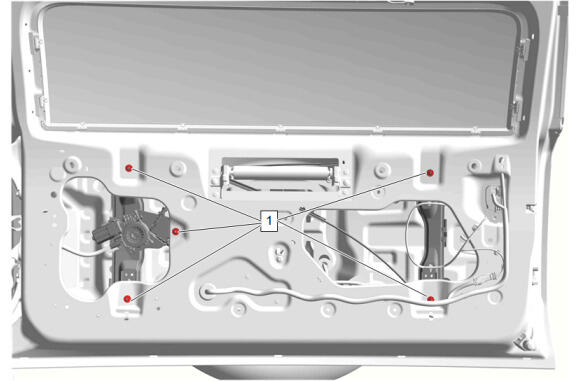

GM6147932Courtesy of GENERAL MOTORS COMPANY
Rear Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Rear Door Window Regulator Replacement (GQ2 / GQB / GQC)

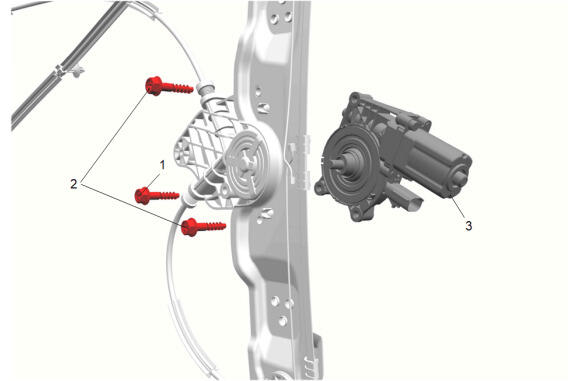

GM6358349Courtesy of GENERAL MOTORS COMPANY
Rear Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Window Regulator Motor Bolt - - 5.5 N.m (49 lb in) Rear Door Window Regulator Motor Replacement (GQ2 / GQB / GQC)
2 Rear Door Window Regulator Motor Bolt [2x] - - 7 N.m (62 lb in) Rear Door Window Regulator Motor Replacement (GQ2 / GQB / GQC)

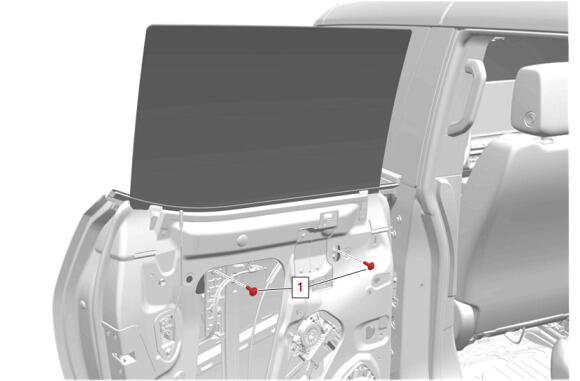

GM5840662Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Sash Retaining Bolt [2x] - - 10 N.m (89 lb in) Front Side Door Window Replacement

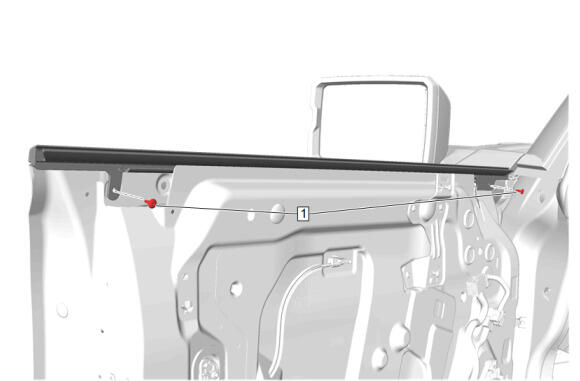

GM5841333Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

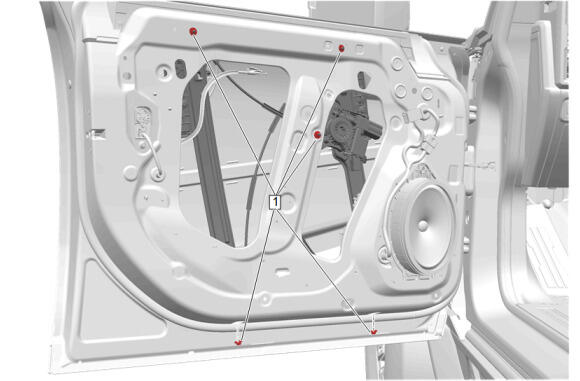

GM5845900Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

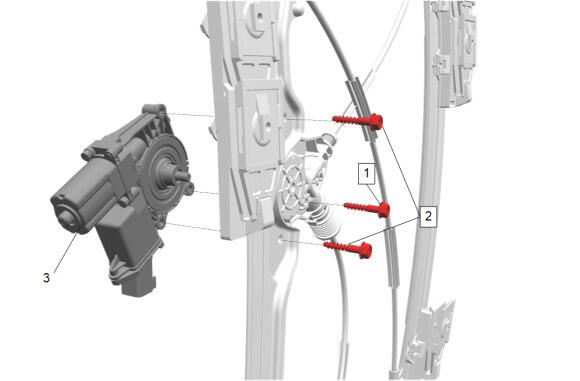

GM6357496Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt - - 5.5 N.m (49 lb in) Front Side Door Window Regulator Motor Replacement
2 Front Side Door Window Regulator Motor Bolt [2x] - - 7 N.m (62 lb in) Front Side Door Window Regulator Motor Replacement
GM5840662Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Sash Retaining Bolt [2x] - - 10 N.m (89 lb in) Rear Side Door Window Replacement

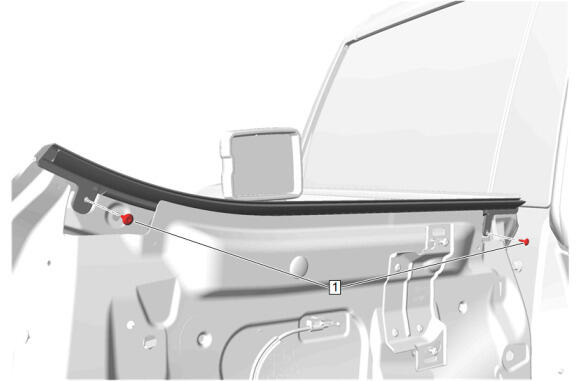

GM5840314Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

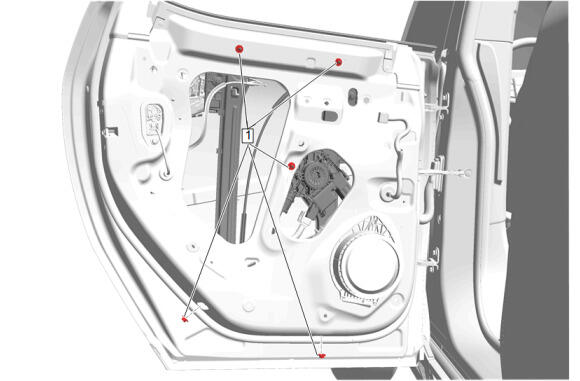

GM5844441Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement

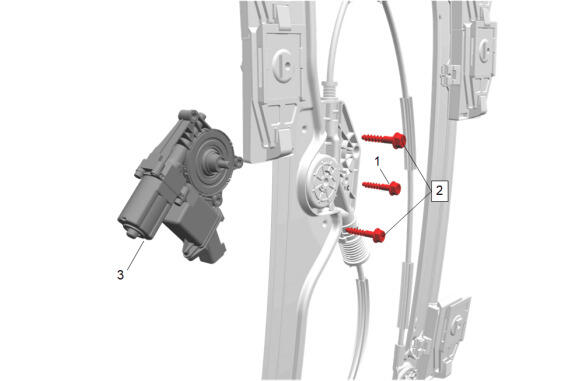

GM6358048Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt - - 5.5 N.m (49 lb in) Rear Side Door Window Regulator Motor Replacement
2 Rear Side Door Window Regulator Motor Bolt [2x] - - 7 N.m (62 lb in) Rear Side Door Window Regulator Motor Replacement

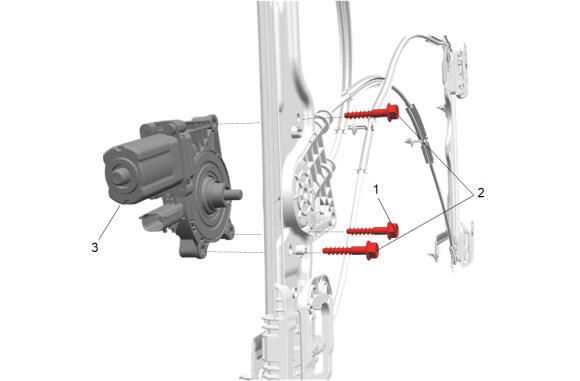

GM6358167Courtesy of GENERAL MOTORS COMPANY
Rear Sliding Window Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Motor Bolt - - 5.5 N.m (49 lb in) Rear Sliding Window Motor Replacement (GQH / GQI / GQO)
2 Rear Sliding Window Motor Bolt [2x] - - 7 N.m (62 lb in) Rear Sliding Window Motor Replacement (GQH / GQI / GQO)

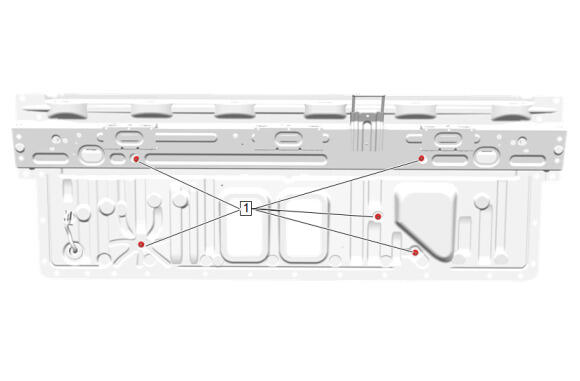

GM5866028Courtesy of GENERAL MOTORS COMPANY
Rear Sliding Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Sliding Window Regulator Nut [5x] - - 11 N.m (97 lb in) Rear Sliding Window Regulator Replacement (GQH / GQI / GQO)

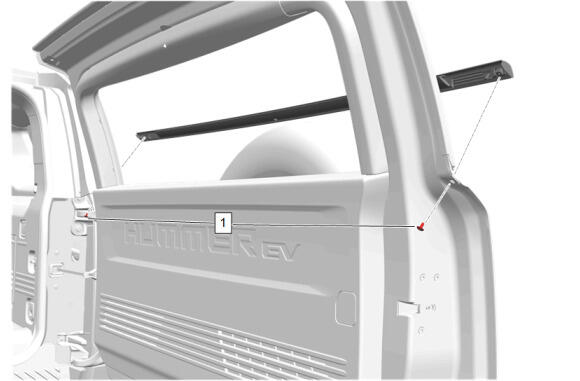

GM6145426Courtesy of GENERAL MOTORS COMPANY
Rear Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Rear Window Weatherstrip Replacement - Outer (GQH / GQI / GQO) , or Rear Window Weatherstrip Replacement - Outer (GQ2 / GQB / GQC)

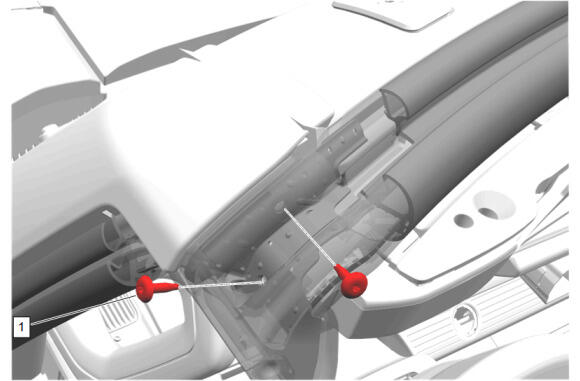

GM6186846Courtesy of GENERAL MOTORS COMPANY
Windshield Frame Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Frame Weatherstrip Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Frame Weatherstrip Replacement
