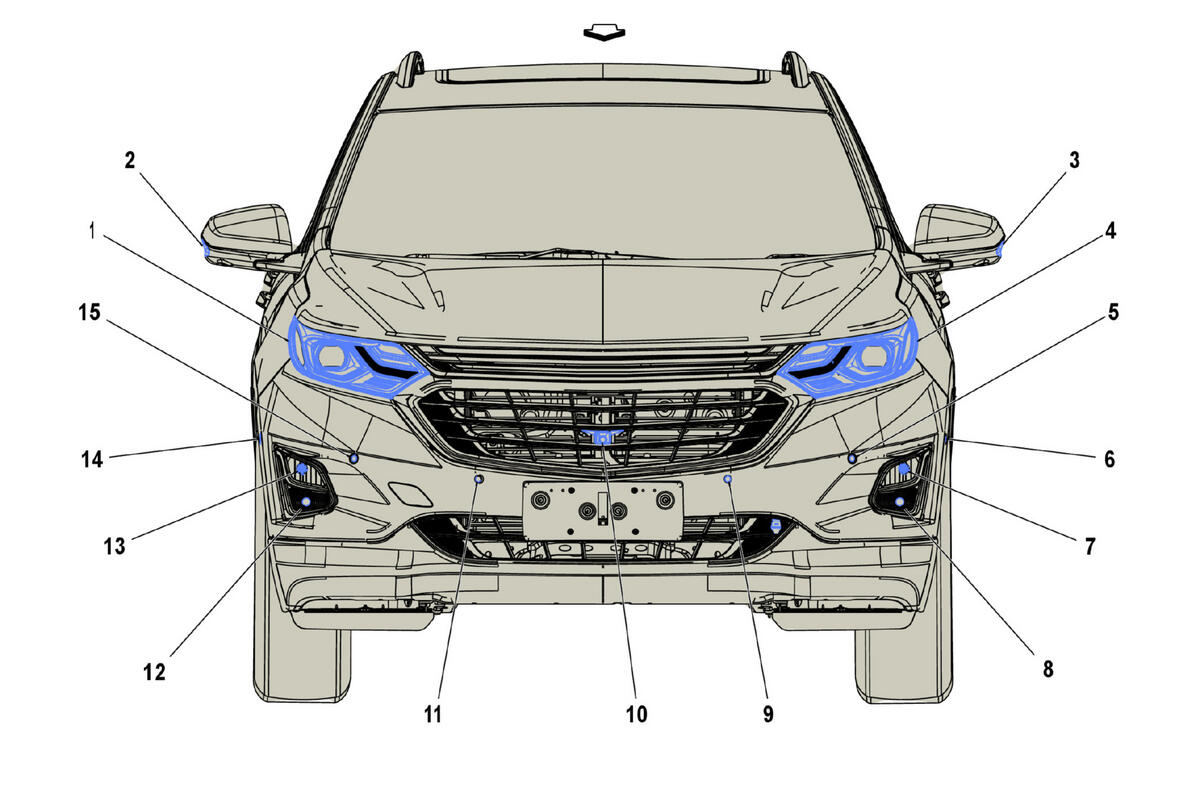

Front of Vehicle

GM6217023Courtesy of GENERAL MOTORS COMPANY
Items
1. E13RA Headlamp Assembly - Right
2. E4Z Turn Signal Repeater Lamp - Right
3. E4Y Turn Signal Repeater Lamp - Left
4. E13LA Headlamp Assembly - Left
5. B306A Parking Assist Sensor - Front Left Outer (UD5/UD7/UFQ) B306A Parking Assist Sensor - Front Left Outer (UD5 / UD7 / UFQ)
6. B306K Parking Assist Sensor - Side Left Front (UD5/UD7/UFQ) B306K Parking Assist Sensor - Side Left Front (UD5 / UD7 / UFQ)
7. E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front (X88) , or E29LF Fog Lamp - Left Front (Z88)
8. E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front
9. B306B Parking Assist Sensor - Front Left Middle (UD5/UD7/UFQ) B306B Parking Assist Sensor - Front Left Middle (UD5 / UD7 / UFQ)
10. B174G Frontview Camera - Grille B174G Frontview Camera - Grille (- V9V) , or B174G Frontview Camera - Grille (V9V)
11. B306C Parking Assist Sensor - Front Right Middle (UD5/UD7/UFQ) B306C Parking Assist Sensor - Front Right Middle (UD5 / UD7 / UFQ)
12. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front
13. E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front (X88) , or E29RF Fog Lamp - Right Front (Z88)
14. B306L Parking Assist Sensor - Side Right Front (UD5/UD7/UFQ) B306L Parking Assist Sensor - Side Right Front (UD5 / UD7 / UFQ)
15. B306D Parking Assist Sensor - Front Right Outer (UD5/UD7/UFQ) B306D Parking Assist Sensor - Front Right Outer (UD5 / UD7 / UFQ)
