Installation Procedure

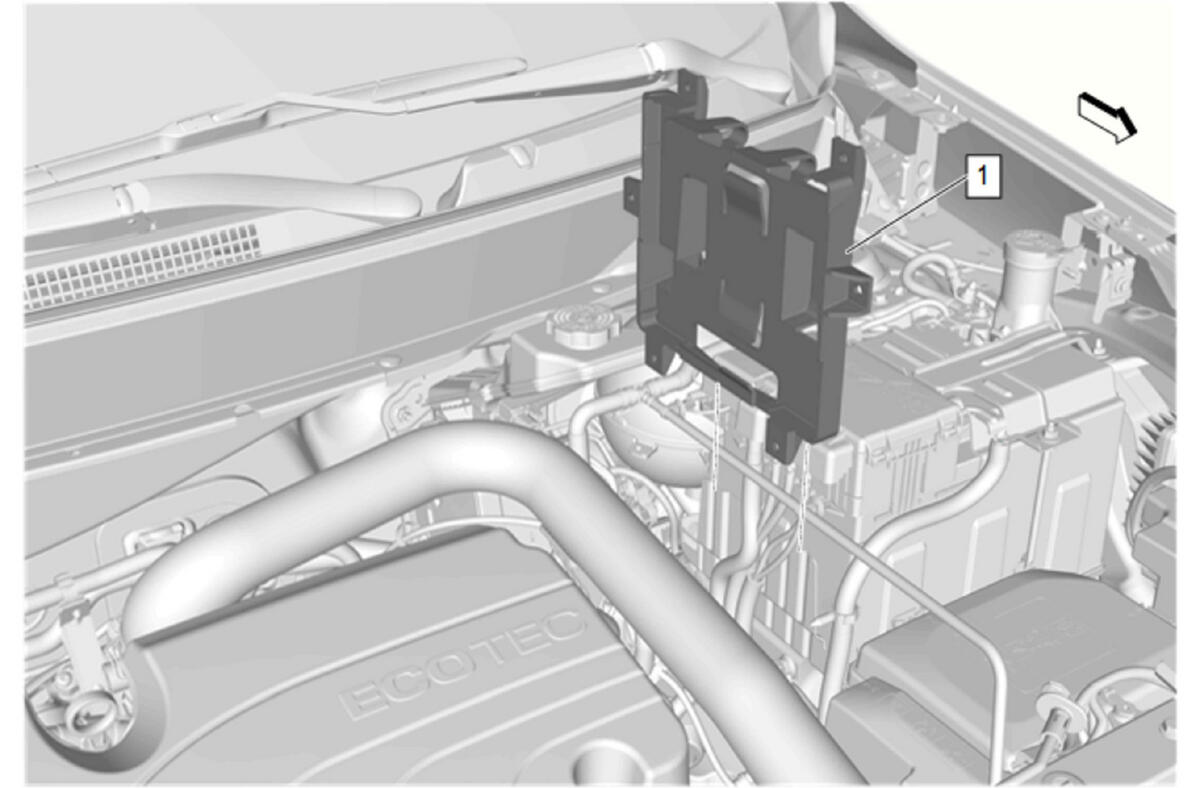

  1. GM6074937Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (1) - Install

  2. Install all retainers to the engine control module bracket.
  3. Engine Coolant Air Bleed Hose @ Engine Control Module Bracket - Install - Engine Coolant Air Bleed Hose Replacement
  4. Engine Control Module - Install - Engine Control Module Replacement
