Installation Procedure

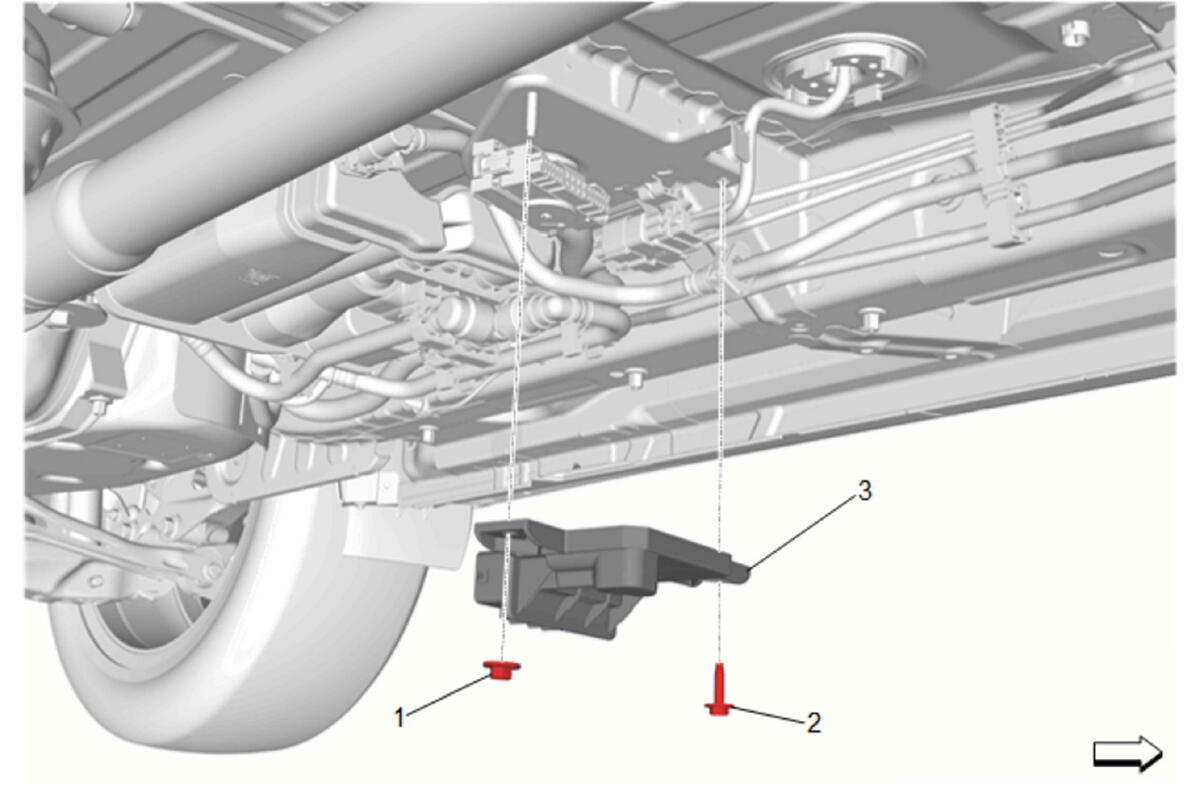

  1. GM6074952Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Pump Power Control Module Bolt (2) - Install and tighten 9 N.m (80 lb in)
  3. Fuel Pump Power Control Module Nut (1) - Install and tighten 9 N.m (80 lb in)
  4. Connect the electrical connector.
  5. Underbody Rear Air Deflector - Install - Underbody Rear Air Deflector Replacement
