Connector Pin Information

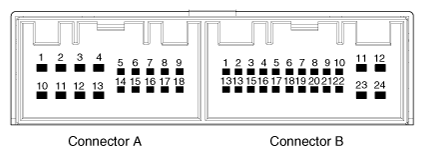

G11341193Courtesy of
No Connector A Connector B
1 - MM CAN HIGH
2 Rear seat LCD monitor ON/OFF -
3 - High-speed CAN (+)
4 - -
5 - AUX video shield GND
6 - IGN 1 B (+)
7 i-BOX microphone (+) AUX Video
8 Illumination (+) AUX R
9 Reverse -
10 i-BOX microphone shield GND MIC (+)
11 - ACC
12 - B (+)
13 - MM CAN low
14 Front seat LCD monitor ON/OFF -
15 - High-speed CAN (-)
16 i-BOX microphone (-) Vehicle speed
17 Illumination (-) Mic shield GND
18 Antenna B (+) AUX audio shield GND
19   AUX video GND
20 AUX DETECT
21 AUX L
22 MIC (-)
23 M GND
24 M GND

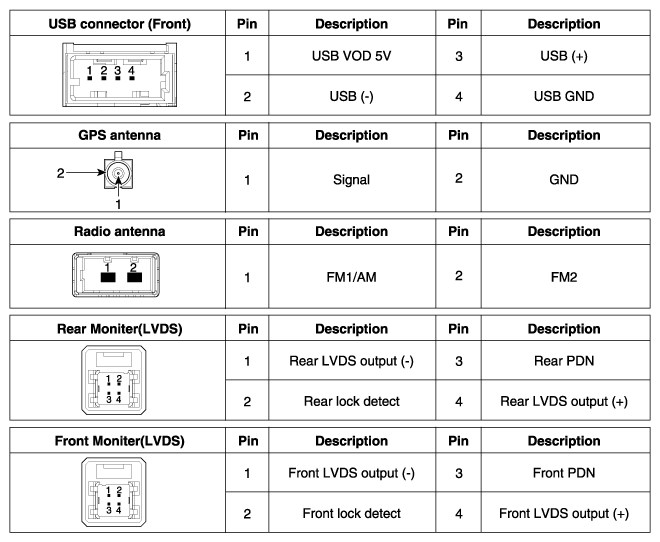

G11341194Courtesy of

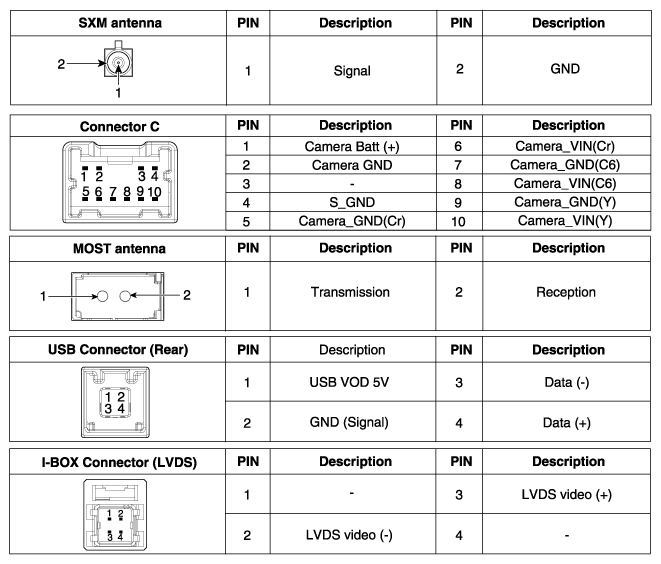

G11341195Courtesy of
