Variant Coding Procedure

■ On-line type on GDS

  1. Turn the ignition switch OFF.
  2. Connect the GDS.
  3. Turn the ignition switch ON without the engine running.
  4. Select vehicle name and airbag system.
  5. Select variant coding mode.
  6. Follow the steps on the screen below.

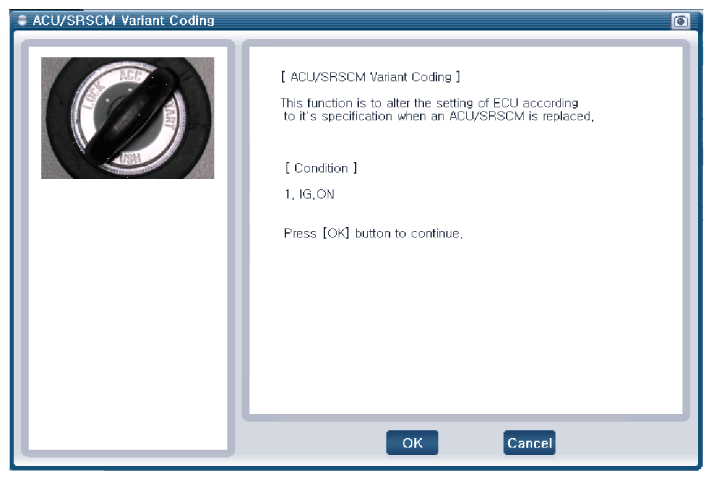

    1. Initial ACU Variant Coding screen
      G11340133Courtesy of

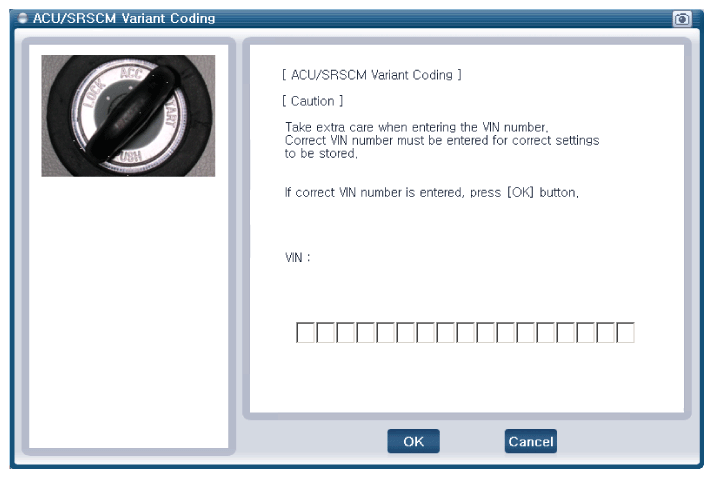

    2. VIN Code entering screen
      G11340134Courtesy of
    3. Variant Coding's proceeding screen-1
      G11340135Courtesy of

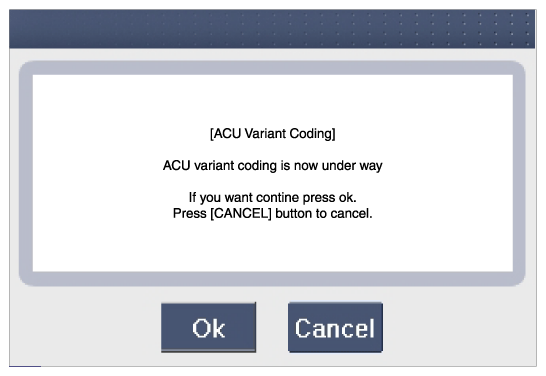

    4. Variant Coding's proceeding screen-2
      G11340136Courtesy of

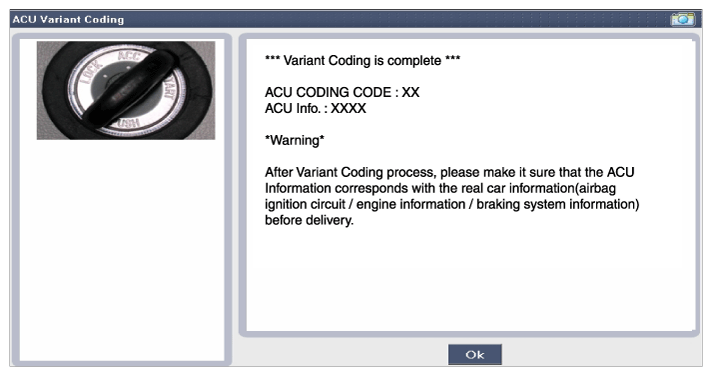

    5. Variant Coding is completed
G11340137Courtesy of
NOTE:

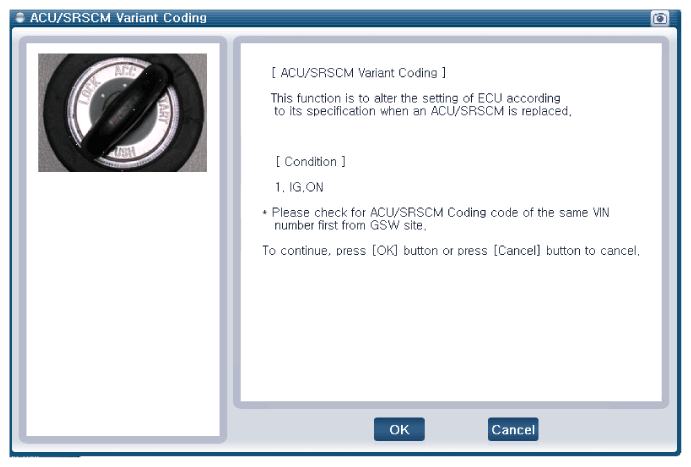

  1. This screen is shown when you try variant coding on the SRSCM which has been performed before.
    G11340138Courtesy of
  2. This screen is shown when communication failure has occurred.
G11340139Courtesy of

■ Off-line type on GDS (Use when not connected to the internet)

  1. Turn the ignition switch OFF.
  2. Connect the GDS.
  3. Turn the ignition switch ON without the engine running.
  4. Select vehicle name and airbag system.
  5. Select variant coding mode.
  6. Follow the steps on the screen below.

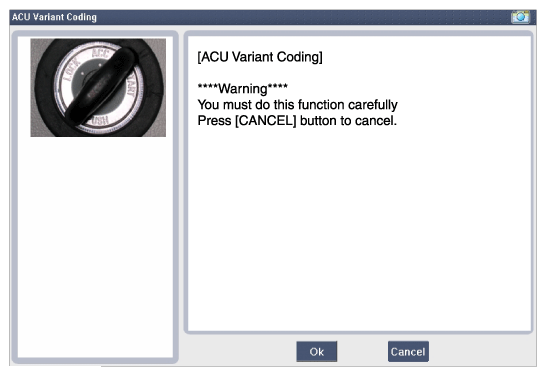

    1. Initial ACU Variant Coding screen
      G11340140Courtesy of

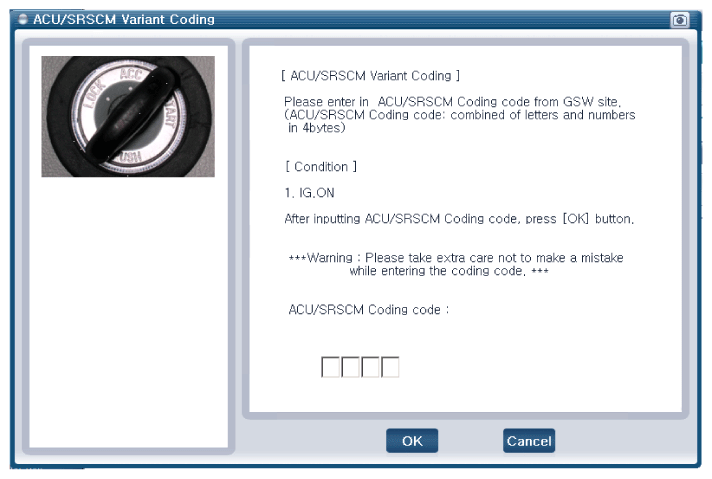

    2. ACU Coding Code entering screen
      G11340141Courtesy of

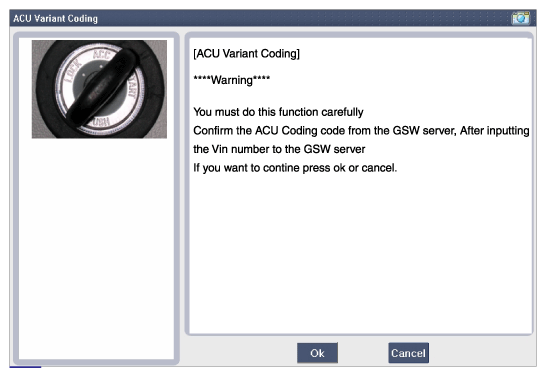

    3. Rechecking ACU Coding Code entering screen
      G11340142Courtesy of

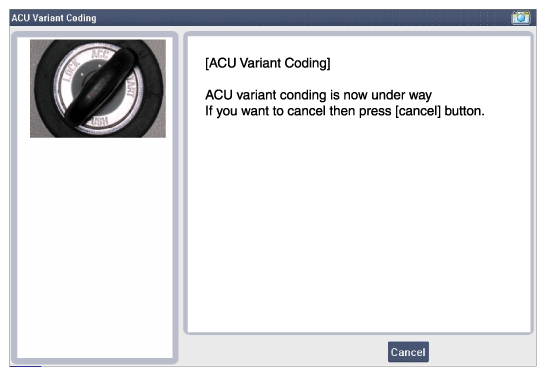

    4. Variant Coding's proceeding screen-1
      G11340143Courtesy of

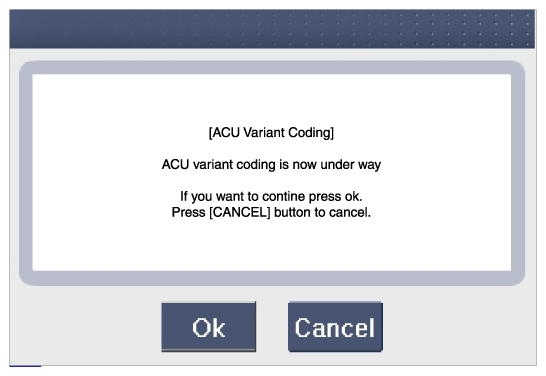

    5. Variant Coding's proceeding screen-2
      G11340144Courtesy of

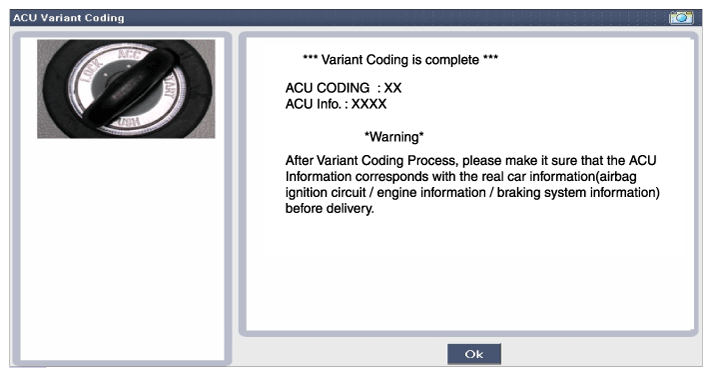

    6. Variant Coding is completed
G11340145Courtesy of
NOTE:

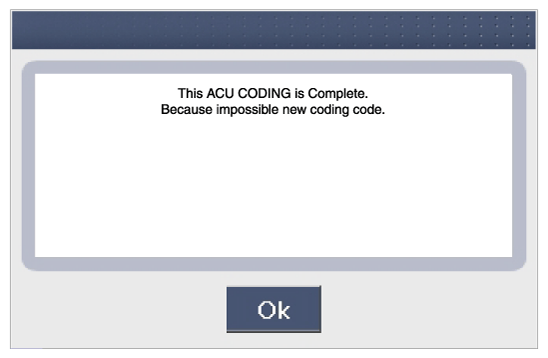

  1. This screen is shown when you try variant coding on the SRSCM which has been performed before.
G11340146Courtesy of
