Correcting the BSD Angle

After replacing the BSD unit or bracket, with the bumper removed, use the BSD unit correction tool set (special tool: 09958-3T000) to perform angle correction.
CAUTION:
- Perform the task on a level place.
- Perform the task after checking the tire pressure.
- Perform the task indoors rather than outdoors so that you can identify the laser beam that is projected from a level laser (special tool: 09958-3T060).
- The level laser (special tool: 09958-3T060) and measuring device (special tool: 09958-3T020) are sensitive to impact. If you are not using the tools, keep them in the respective cases.
Attach a vertical plumb (special tool: 09958-3T010) on the hood, and lower the plumb (A) to the ground so that it passes through the center of the emblem.

Courtesy of
Install an optical receiver (special tool: 09958-3T020) below the plumb (A).

Courtesy of
NOTE:
- When you install the optical receiver (special tool: 09958-3T020), adjust the tripod (A) so that the optical receiver is level with the ground.
- Check the level by looking through the level checking window (B).
- Make sure that the plumb (D) is positioned above the hole (C) of the optical receiver as shown in illustration (A).
- Make sure that the front of the optical receiver faces the rear of the vehicle.
Courtesy of

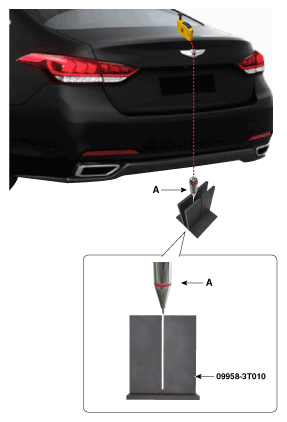

Attach a vertical plumb (special tool: 09958-3T010) on the trunk (or tailgate), and lower the plumb (A) to the ground so that it passes through the center of the emblem.

Courtesy of
Install the rear setting jig (special tool: 09958-3T030) so that its hole is placed directly under the plumb (A).

Courtesy of

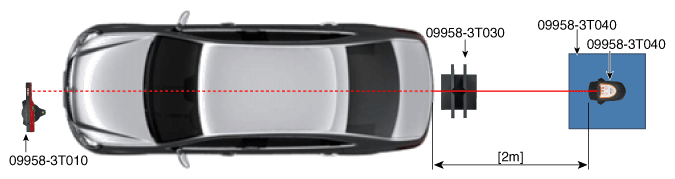

Place the laser support (special tool: 09958-3T040) at a location "2m" away from the rear of the vehicle and install the level laser (special tool: 09958-3T060) above the laser support.

Courtesy of
NOTE:

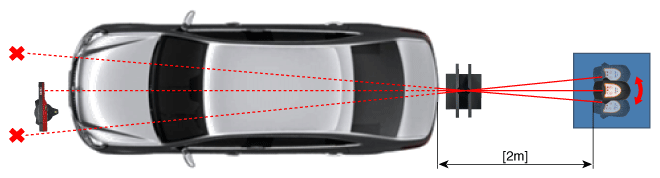

- Move the level laser (special tool: 09958-3T060) slowly to left or right to form a center line.
- When the laser beam goes through the hole of the rear setting jig and the level laser is placed at the center of the optical receiver, a buzzer sounds and the center line is formed on.
Courtesy of

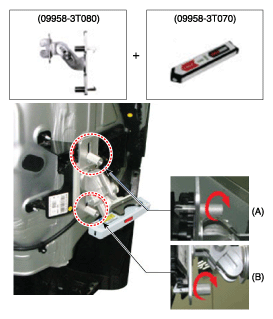

Mount the BSD unit fixing adaptor (special tool: 09958-3T080) on the BSD unit and fix the level laser (special tool: 09958-3T070).

Courtesy of

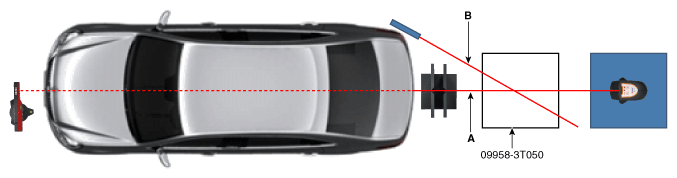

Install an angle measuring plate (special tool: 09958-3T050) at a location where the center line laser beam (A) and the horizontal laser beam (B) cross each other.

Courtesy of
Measure the angle between the center line (A) of the angle measuring plate and the horizontal laser beam (B) using a digital protractor (special tool: 09958-3T090).

Courtesy of

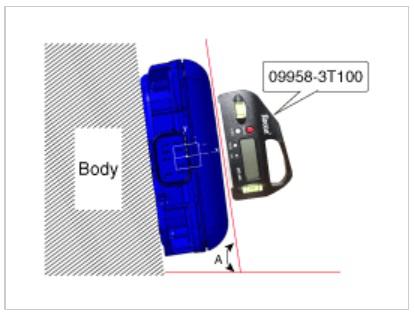

Use a digital inclinometer (special tool: 09958-3T100) to measure the vertical angle of the BSD unit.
Vertical Angle: 87° (-0.75°/+1.25°)

Courtesy of

NOTE: Digital inclinometer (09958-3T100) Vertical measurement angle (A) : 87° (-0.75°/+1.25°)

Courtesy of

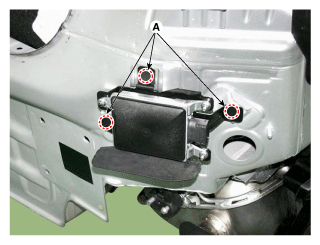

Measure the horizontal and vertical angles of left and right BSD units. If the measured values deviate from the specified values, insert a washer between the bracket of the BSD unit.
Specified Values

Horizontal Angle: 63 - 73°

Vertical Angle: 86.2 - 91.2°

Courtesy of
After checking and correcting the BSD unit angle, perform the BSD radar correction procedure.

BSD Unit Alignment

To correctly sense vehicles on the neighboring lanes using the radar, the direction of the sensor and the direction of the vehicle must be aligned.

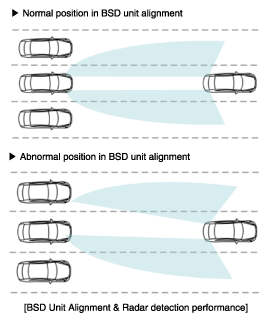

This is the BSD unit alignment. If this alignment is not performed as in illustration below, it may cause degradation of detection performance and false alarms.

In particular, rear bumper accident vehicles and vehicles that replaced BSD unit must carry out this alignment procedure.

Courtesy of

Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
Select "BSD Radar Calibration" procedure in BSD system.

Courtesy of

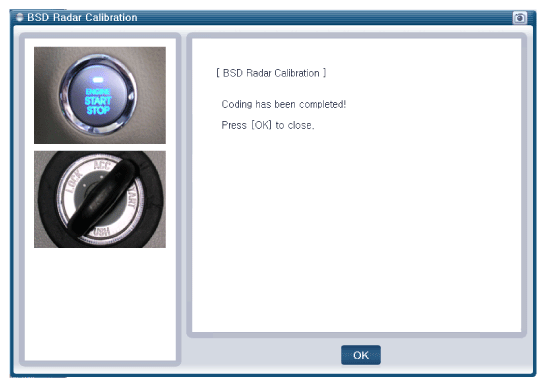

Perform the "BSD Radar Calibration" procedure according to the GDS screen message.
