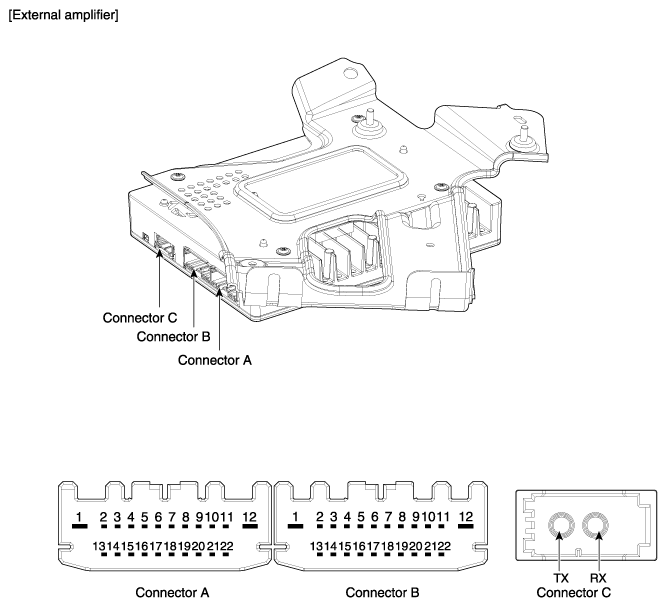

| 1 |
- |
1 |
GND |
1 |
transmission (Tx) |
| 2 |
Front center (-) |
2 |
Front Left midrange/tweeter (+) |
2 |
reception (Rx) |
| 3 |
Front center (+) |
3 |
Front Left midrange/tweeter (-) |
3 |
|
| 4 |
Subwoofer (-) |
4 |
Left Surround (+) |
4 |
| 5 |
Subwoofer (+) |
5 |
Left Surround (-) |
5 |
| 6 |
- |
6 |
- |
6 |
| 7 |
- |
7 |
- |
7 |
| 8 |
Front bass (LH) (+) |
8 |
- |
8 |
| 9 |
Front bass (LH) (-) |
9 |
- |
9 |
| 10 |
Front bass (RH) (-) |
10 |
- |
10 |
| 11 |
Front bass (RH) (+) |
11 |
- |
11 |
| 12 |
- |
12 |
B (+) |
12 |
| 13 |
left midrange/tweeter (-) |
13 |
bass (LH) (-) |
13 |
| 14 |
left midrange/tweeter (+) |
14 |
bass (LH) (+) |
14 |
| 15 |
right midrange/tweeter (-) |
15 |
Reserved (-) |
15 |
| 16 |
Right midrange/tweeter (+) |
16 |
Reserved (+) |
16 |
| 17 |
bass (RH) (-) |
17 |
- |
17 |
| 18 |
bass (RH) (+) |
18 |
CAN (-) |
18 |
| 19 |
Front midrange/tweeter (+) |
19 |
CAN (+) |
19 |
| 20 |
Front midrange/tweeter (-) |
20 |
- |
20 |
| 21 |
Surround (RH) (-) |
21 |
IGN1 |
21 |
| 22 |
Surround (RH) (+) |
22 |
ACC |
22 |
