Home
>>
Genesis
>>
2017
>>
G80 3.8, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Fuel System
>>
Fuel Delivery System - 3.8L
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

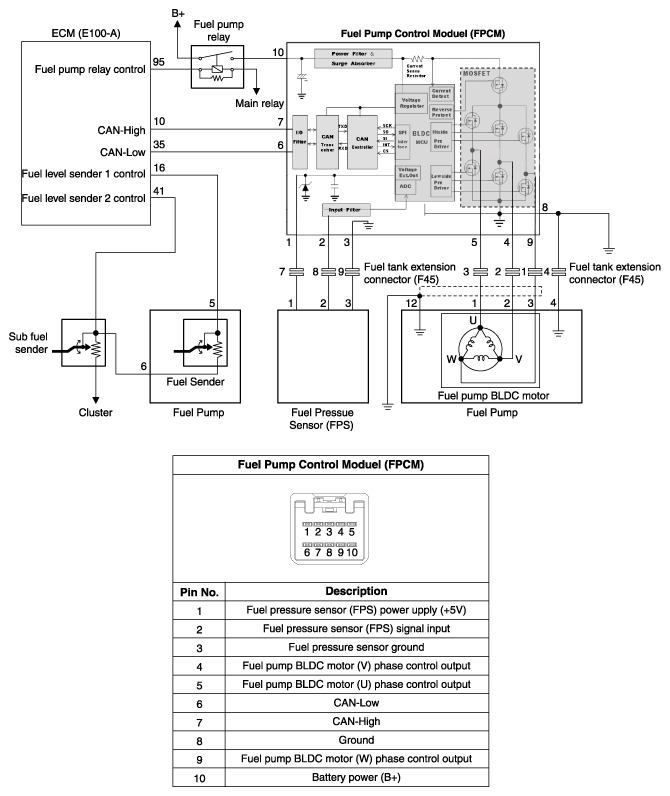

Circuit Diagram
Courtesy of
Courtesy of
