Fuel Delivery System - 5.0L
>>
Fuel Pump Control Module
>>
Schematic Diagram
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

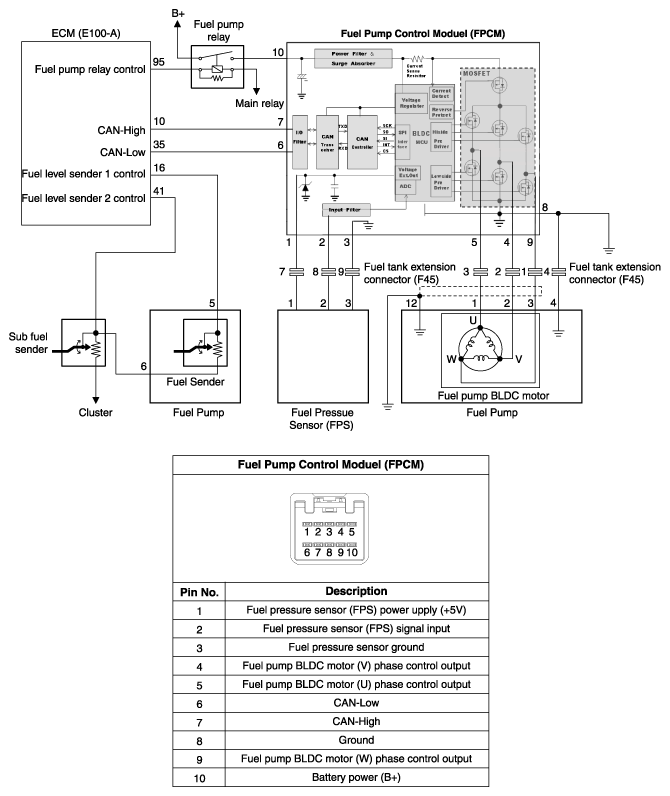

Circuit Diagram
Courtesy of
Courtesy of
