Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the boost pressure sensor after removing the mounting Bolts (B).

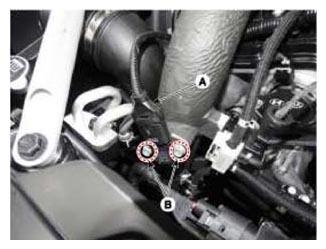

    Fig 1: Boost Pressure Sensor Connector And Mounting Bolts
    G11412139Courtesy of HYUNDAI MOTOR AMERICA
