Repair Procedures: Removal
WARNING:
- In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any remedy work right after engine stops.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE
" in this procedure).CAUTION:
- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the delivery pipe & injector assembly (Refer to "DELIVERY PIPE " in this procedure).

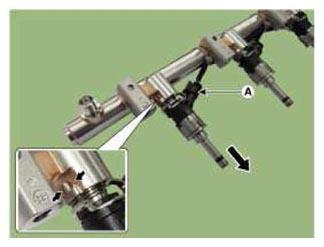

- Remove the injector from the delivery pipe after disconnect the connector (A).
NOTE:

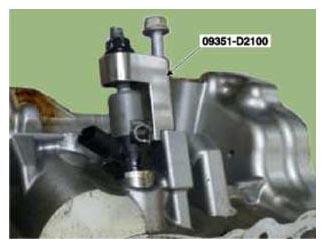

- If the injector adheres to the cylinder head, use the special Service Tool (SST No.: 09351-D2100)
