Repair Procedures: Inspection

Start the engine.
Check the fuel feed line (A) installation state and fuel leakage state.

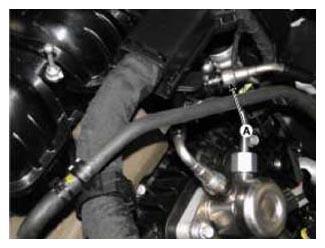

Fig 1: Locating Fuel Feed Line
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear seat cushion assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A) after loosening the screws.

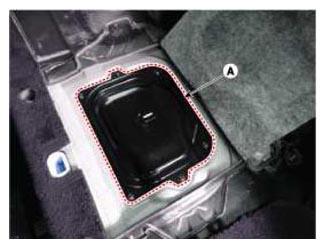

Fig 2: Locating Fuel Pump Service Cover
Courtesy of HYUNDAI MOTOR AMERICA
Check the fuel feed quick-connector (A) installation state and fuel leakage state.

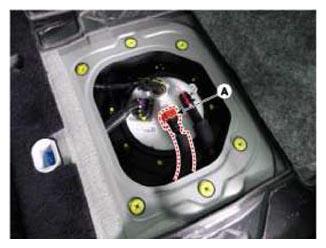

Fig 3: Locating Fuel Feed Quick-Connector
Courtesy of HYUNDAI MOTOR AMERICA
Lift the vehicle.
Check the fuel leakage state.

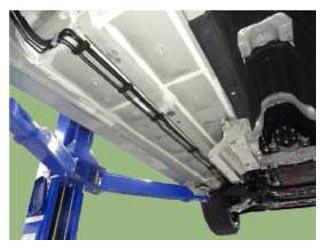

Fig 4: Fuel Line (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

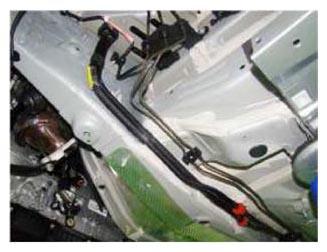

Fig 5: Fuel Line (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Replace the fuel line after checking the abnormal fuel line.
(Refer to Fuel Delivery System - "FUEL LINE ")
