Smart Cruise Control System

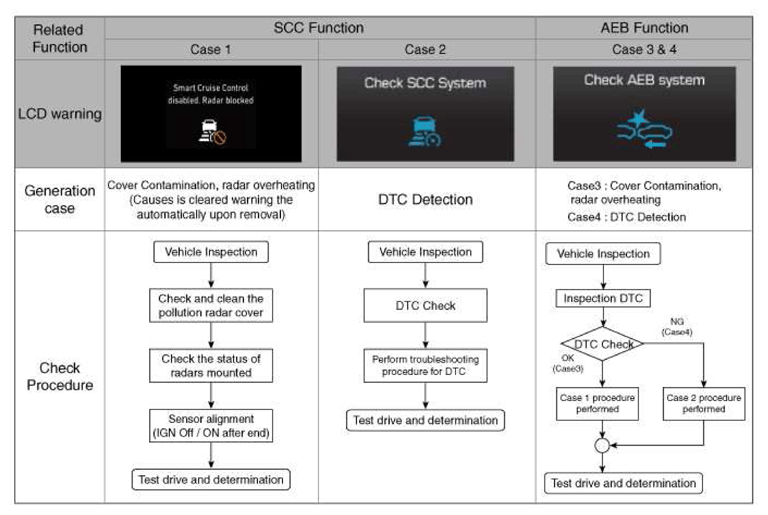

Fig 1: Smart Cruise Control System Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
