Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (1) and (2).

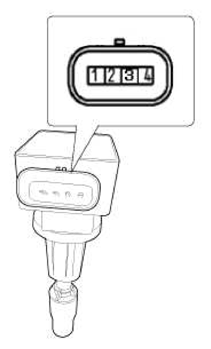

    Fig 1: Measuring Primary Coil Resistance Between Terminals (1) And (2)
    G11403841Courtesy of HYUNDAI MOTOR AMERICA

    Standard Value:  10 MΩ or more
